SPECIFICATIONS
Brand Name: GIRIER
Certification: CE,RoHS
Child-lock: Yes
Choice: yes
Communication Frequency: 2.405-2.408GHz
High-concerned chemical: None
Model Number: Smart TRV
Operation Temperature Range: 5°C~30°C
Room Temperature Display Range: 0°C~50°C
Shipping & Storage Temperature: -10°C~60°C
Size: 74mm*55mm
Standard: Smart thermostatic radiator valve
Temperature Setting Accuracy: 1°C
Temperature Setting Range: 5-35℃
Type: ZigBee radiator thermostat

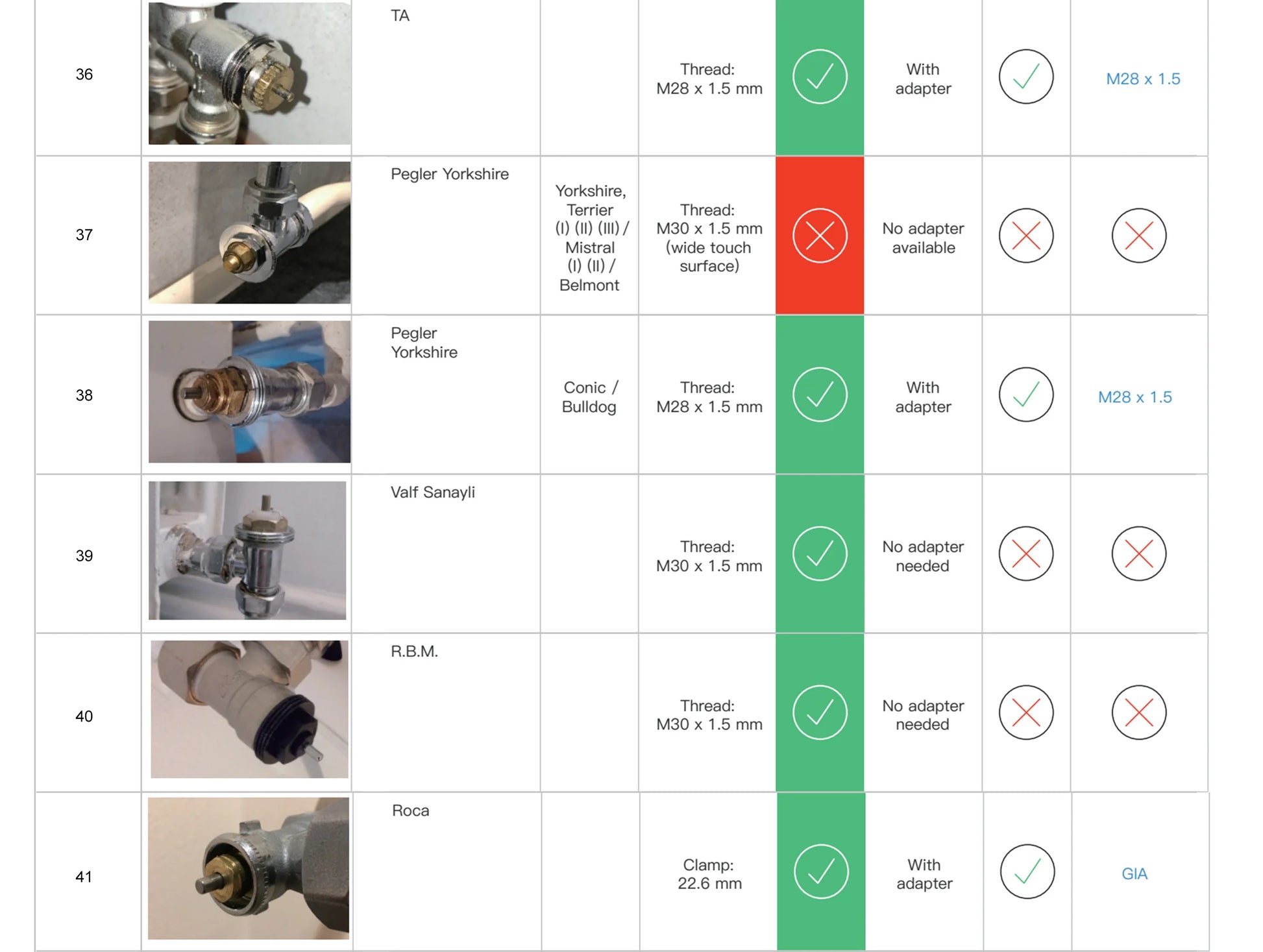

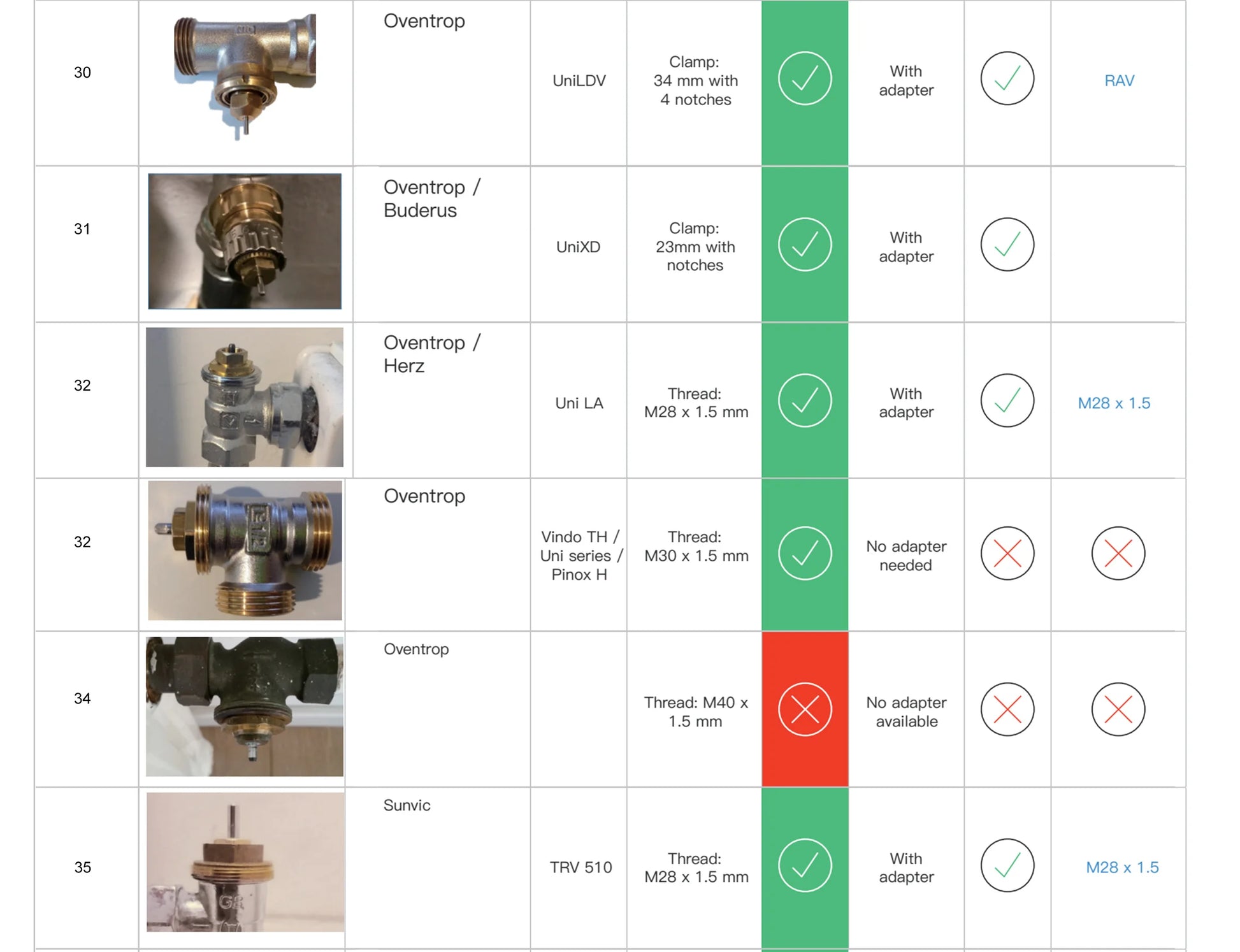

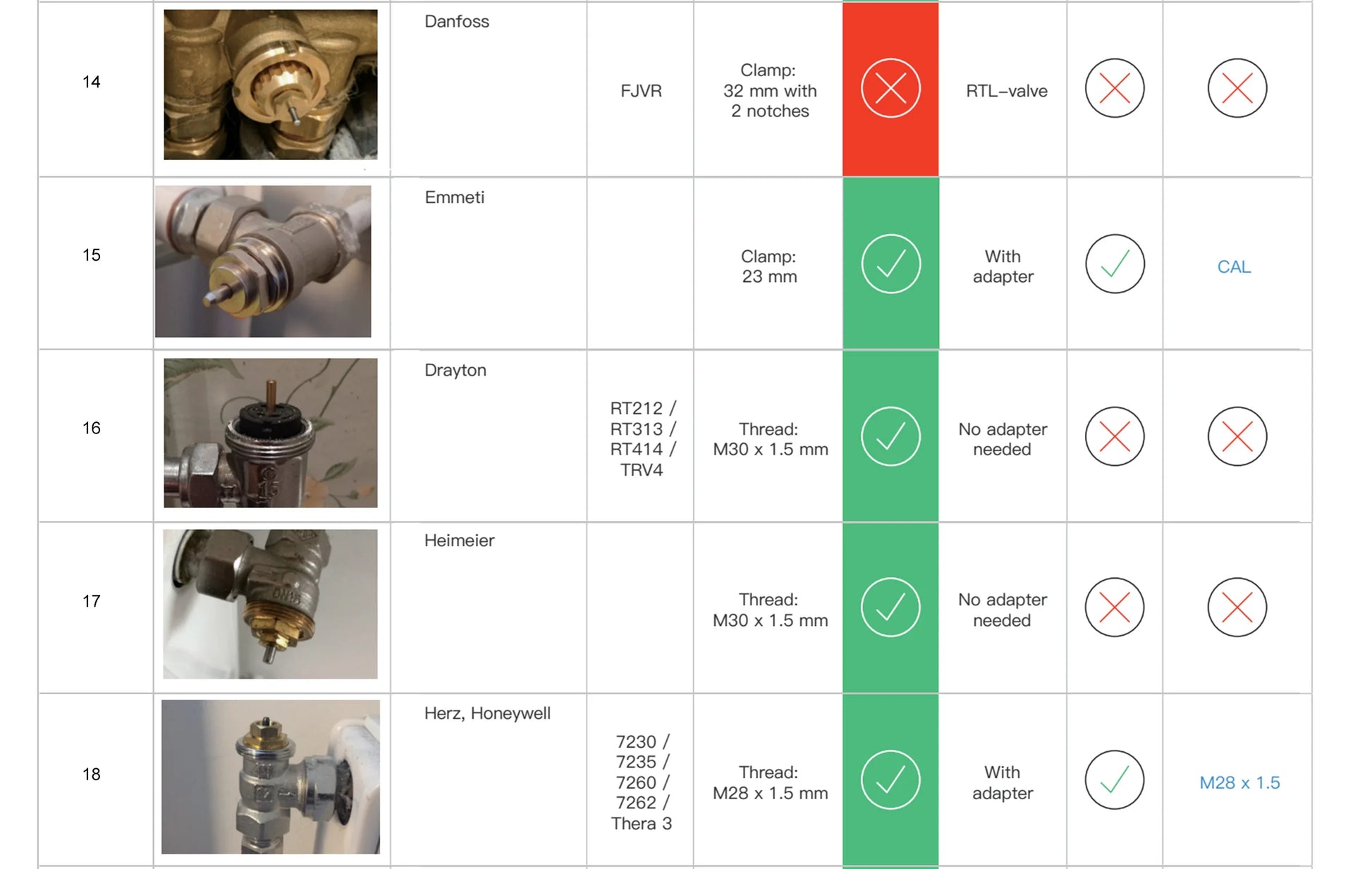

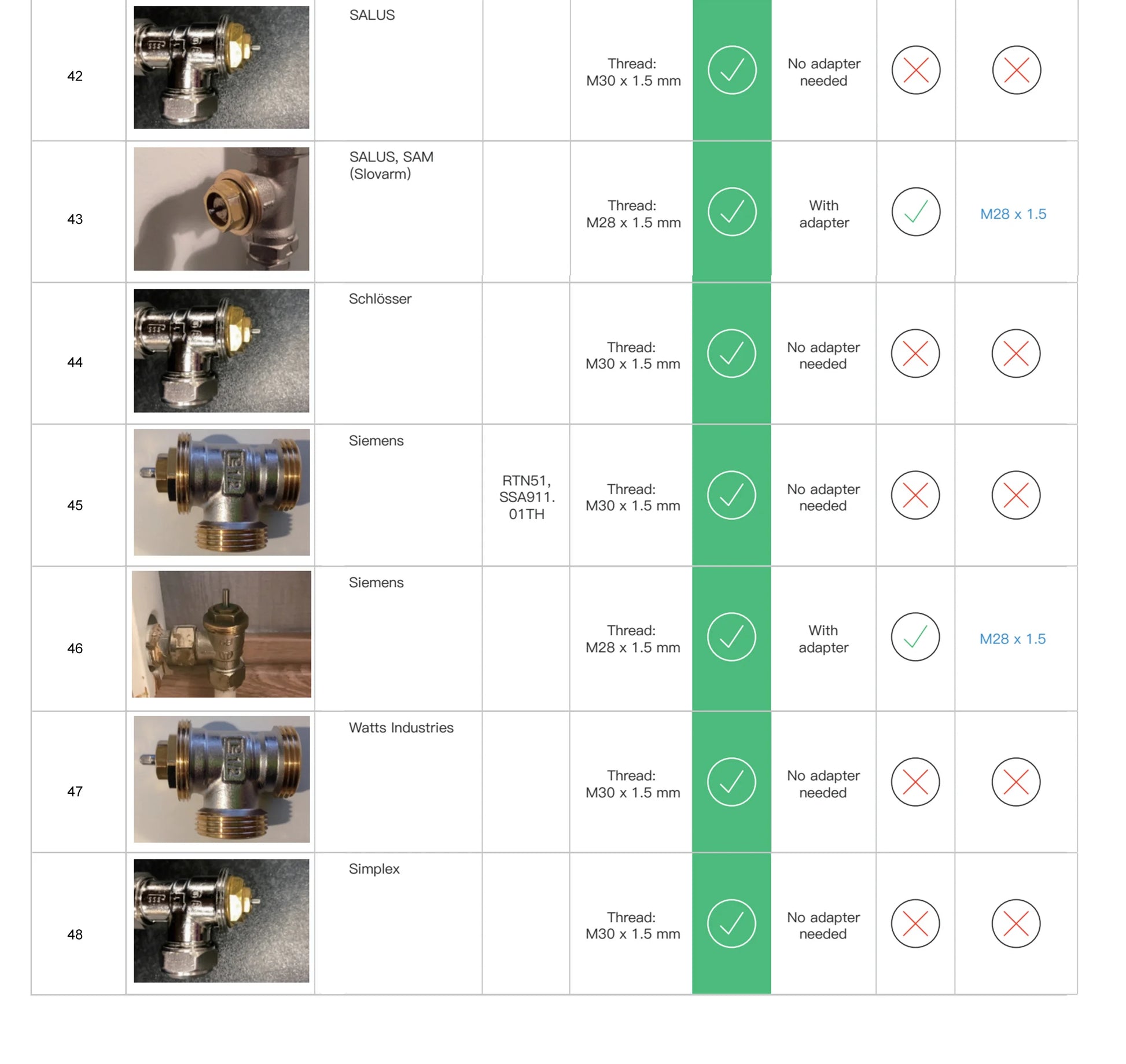

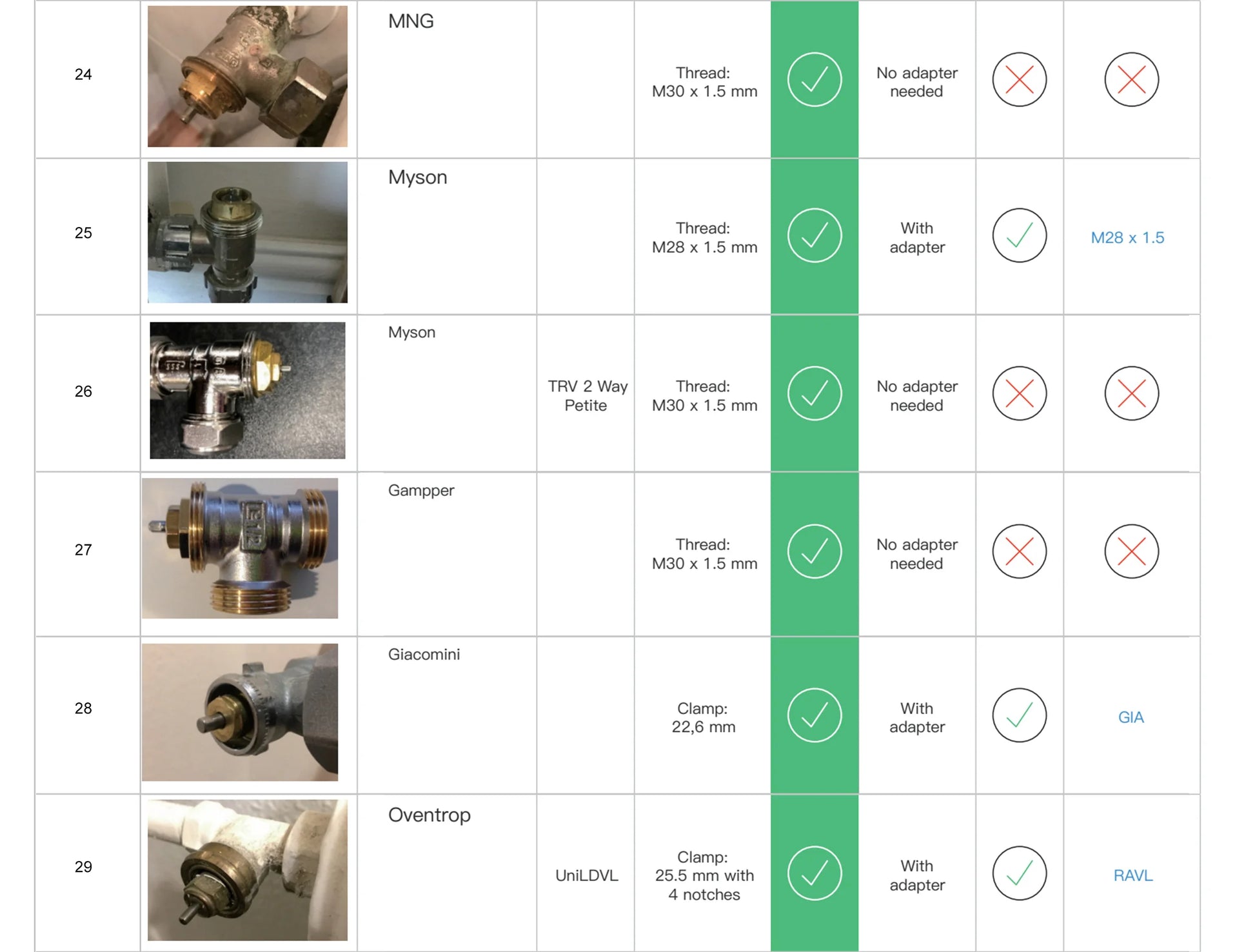

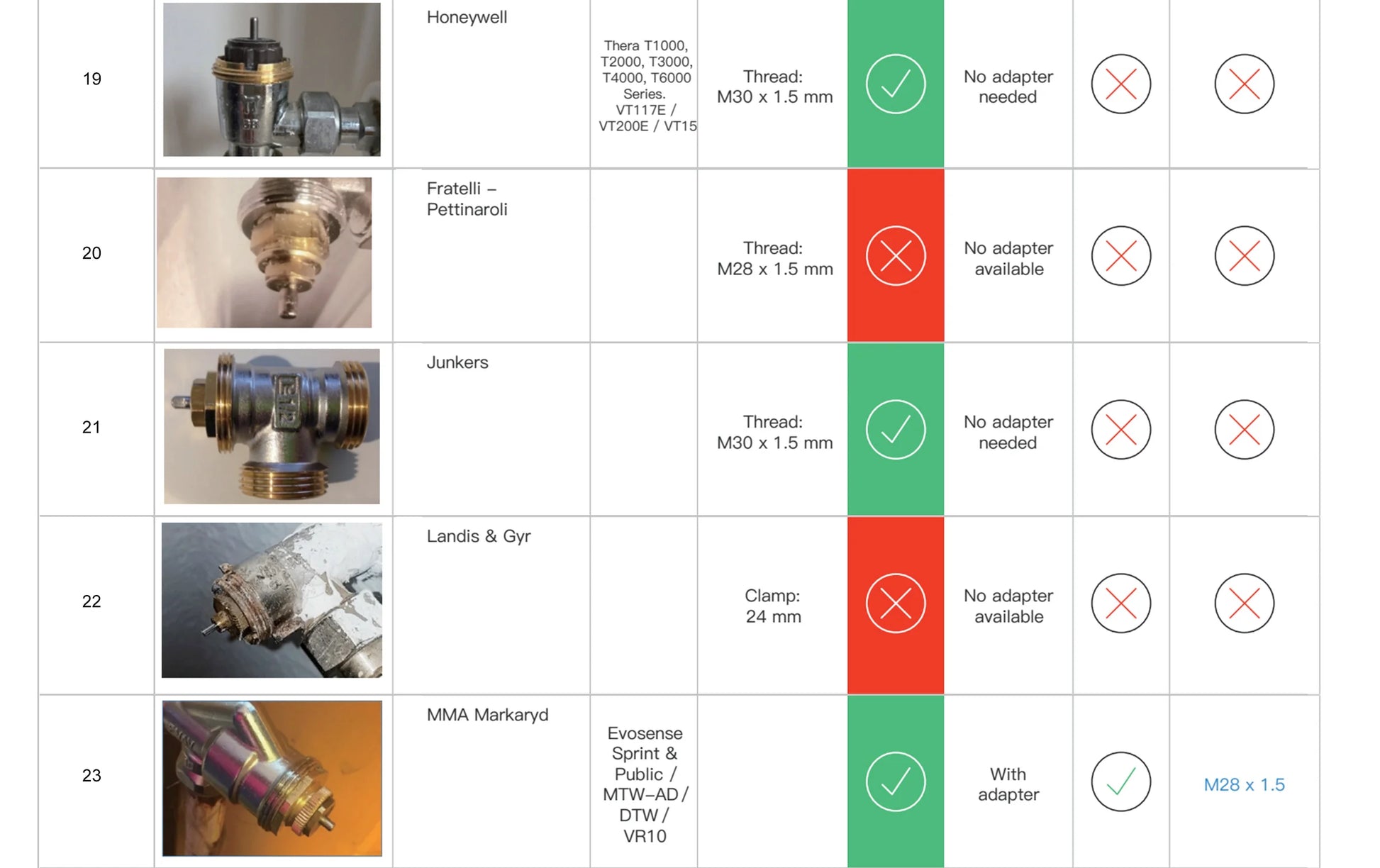

Valve Installation Compatible: M30x1.5mm, M28*1.5mm, Danfoss(RA/RAV/RAVL), Giacomini Caleffi

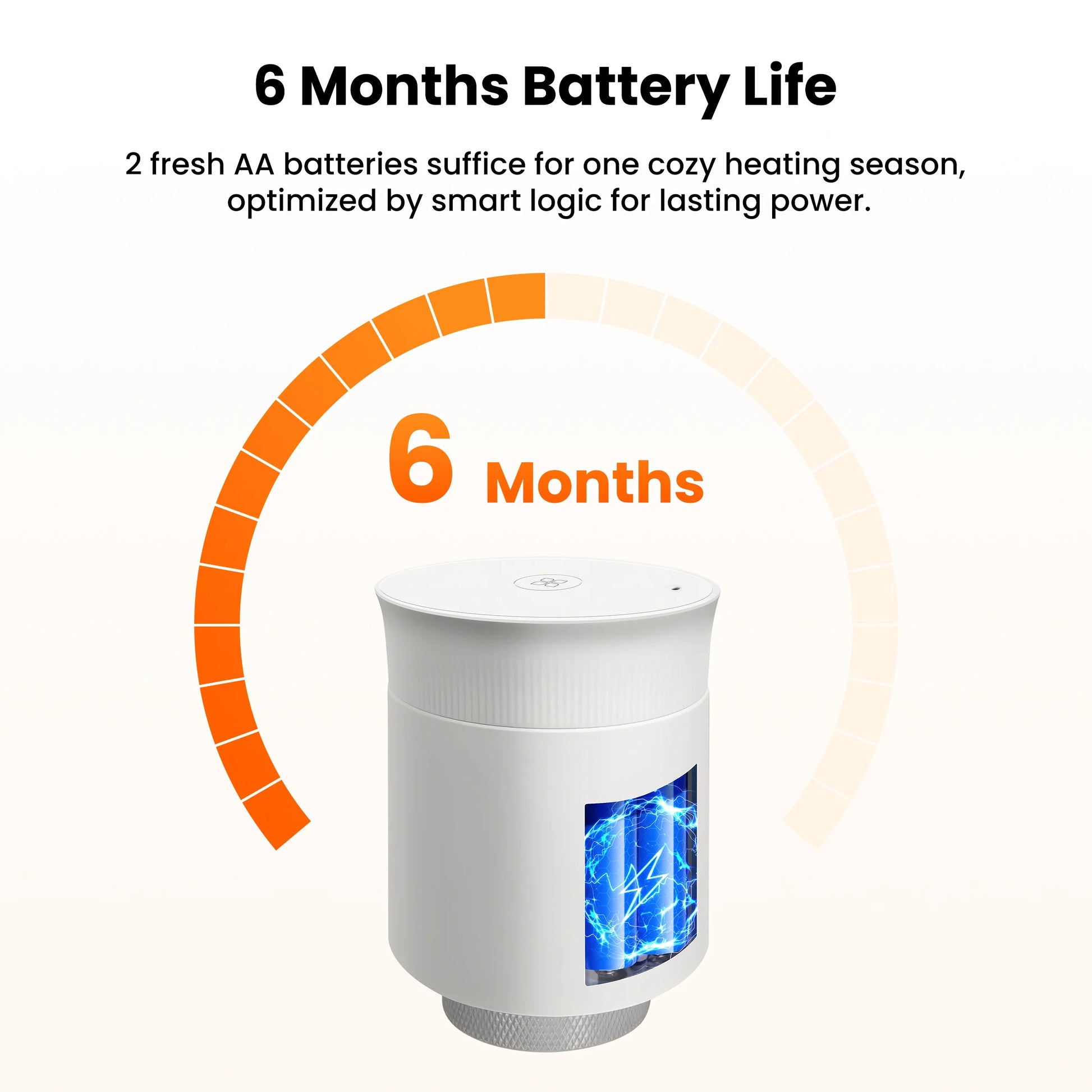

Wattage: 2*1.5V AA Batteries
Window Open Detection: Support
ZigBee Frequency: IEEE 802.15.4
ZigBee Hub Requirement: Tuya ZigBee Hub Needed

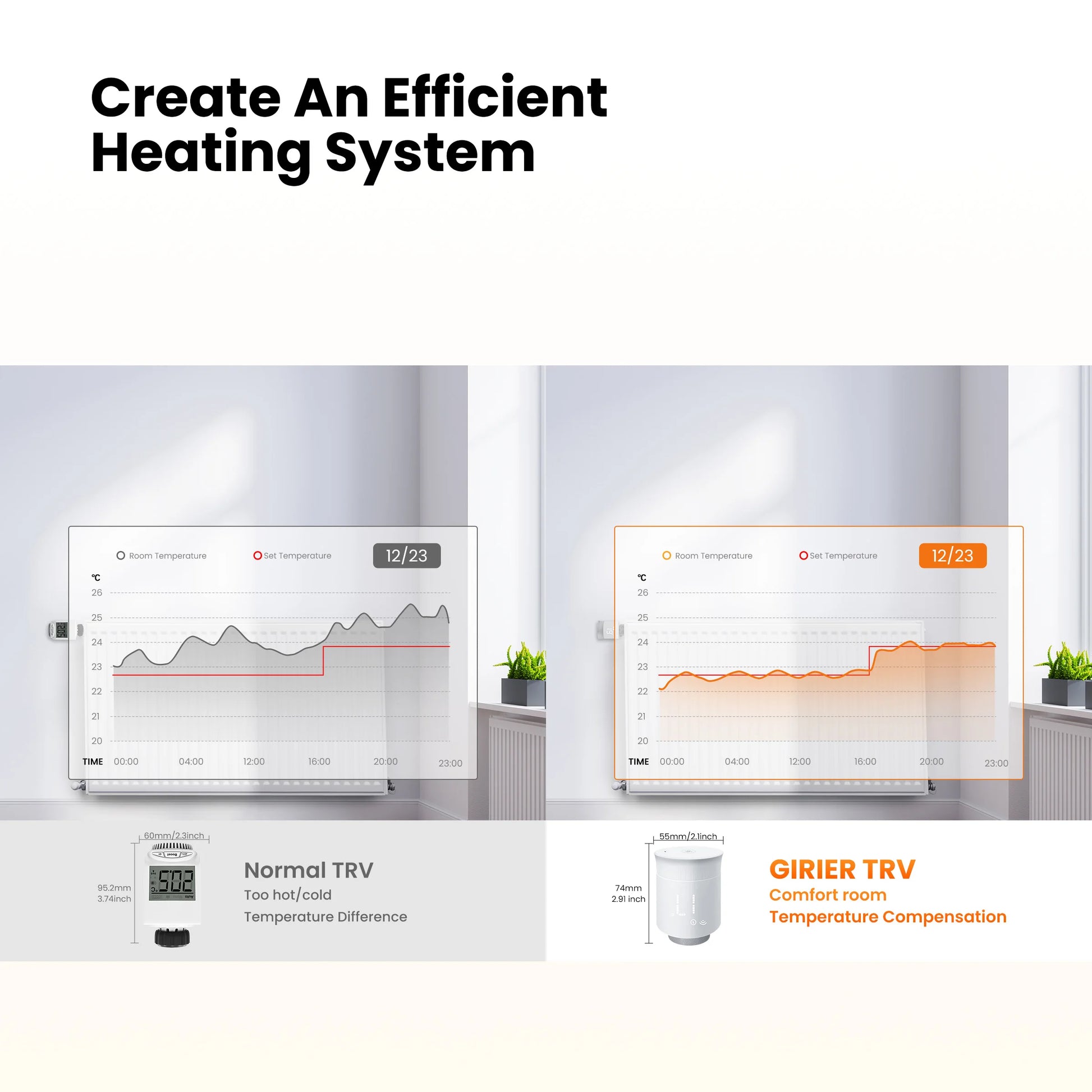

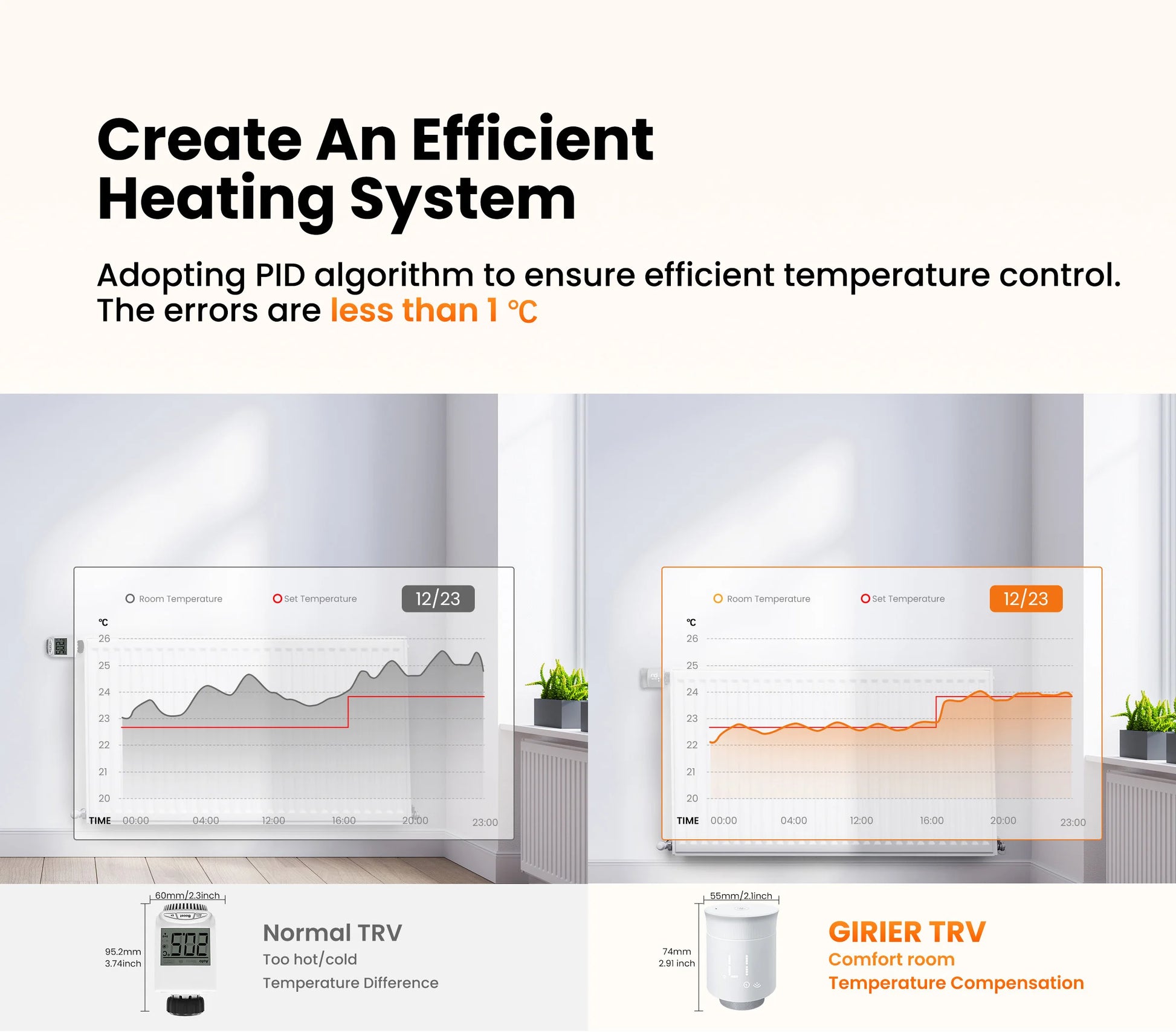

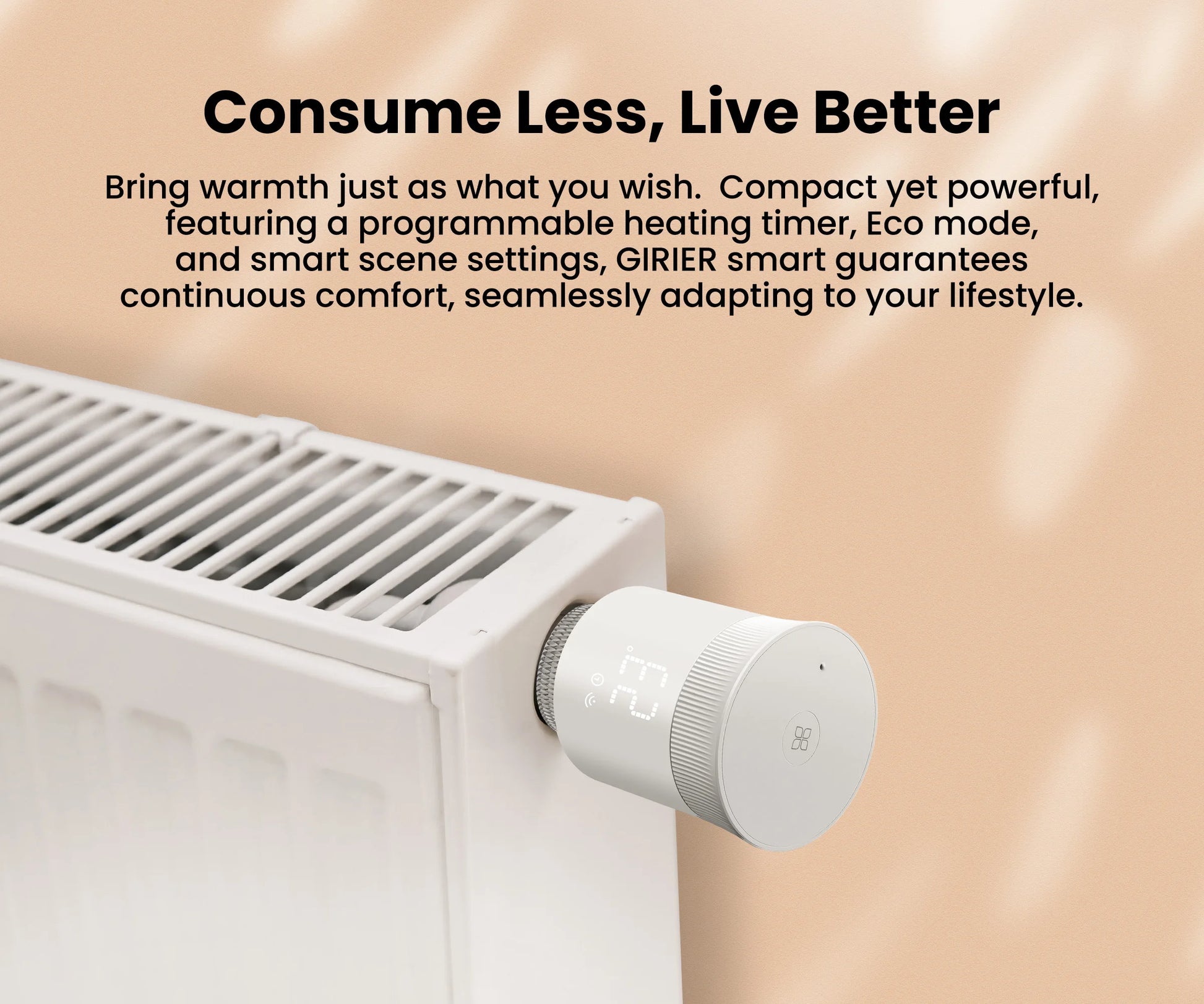

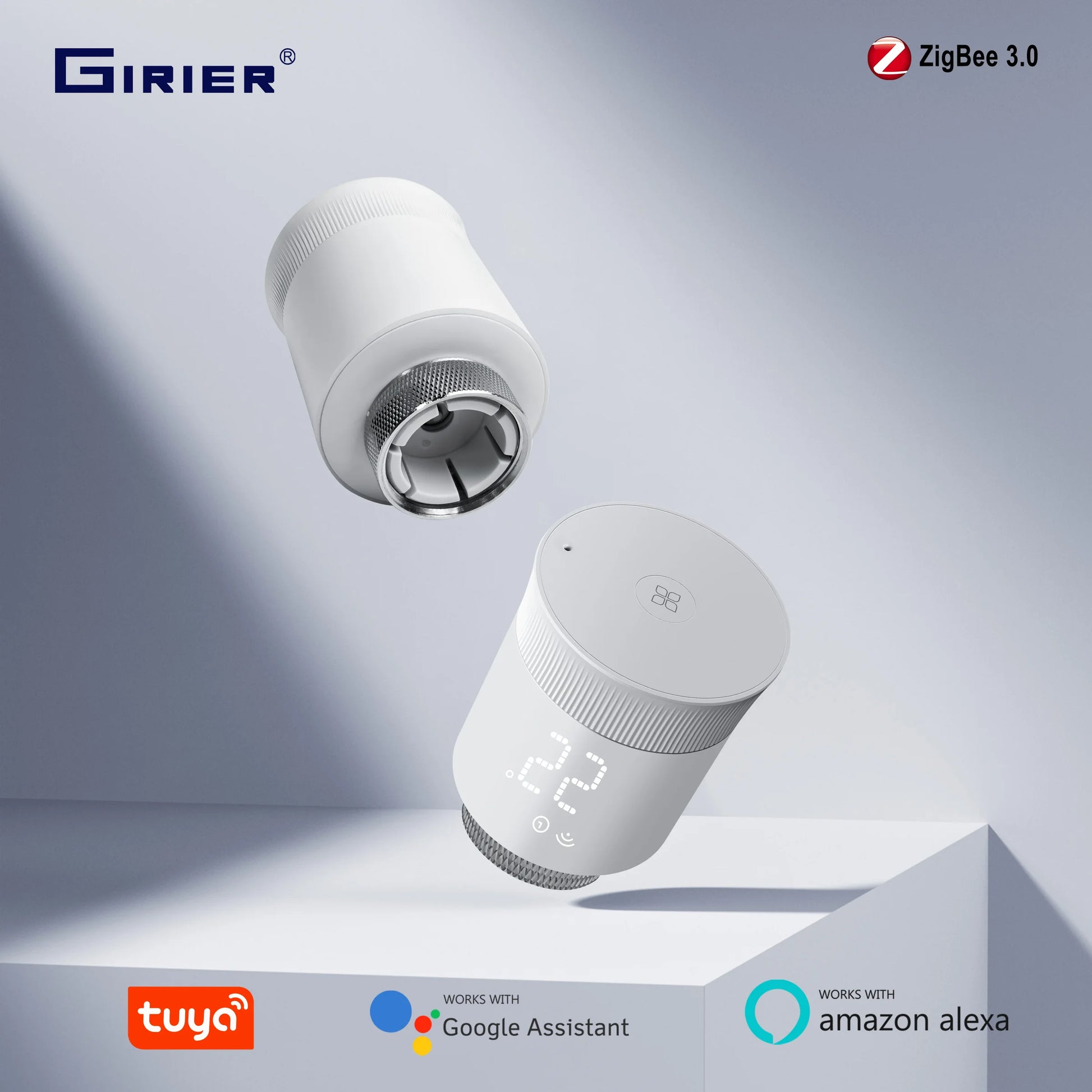

Create An Efficient Heating System
Mini body, yet powerful. Adopting PID algorithm to ensure efficient temperature control. The errors are less than 1 ℃. Programmable heating timer, Eco mode, and smart scenes optimize your temperature control, while window open detection automatically adjusts to prevent energy waste.

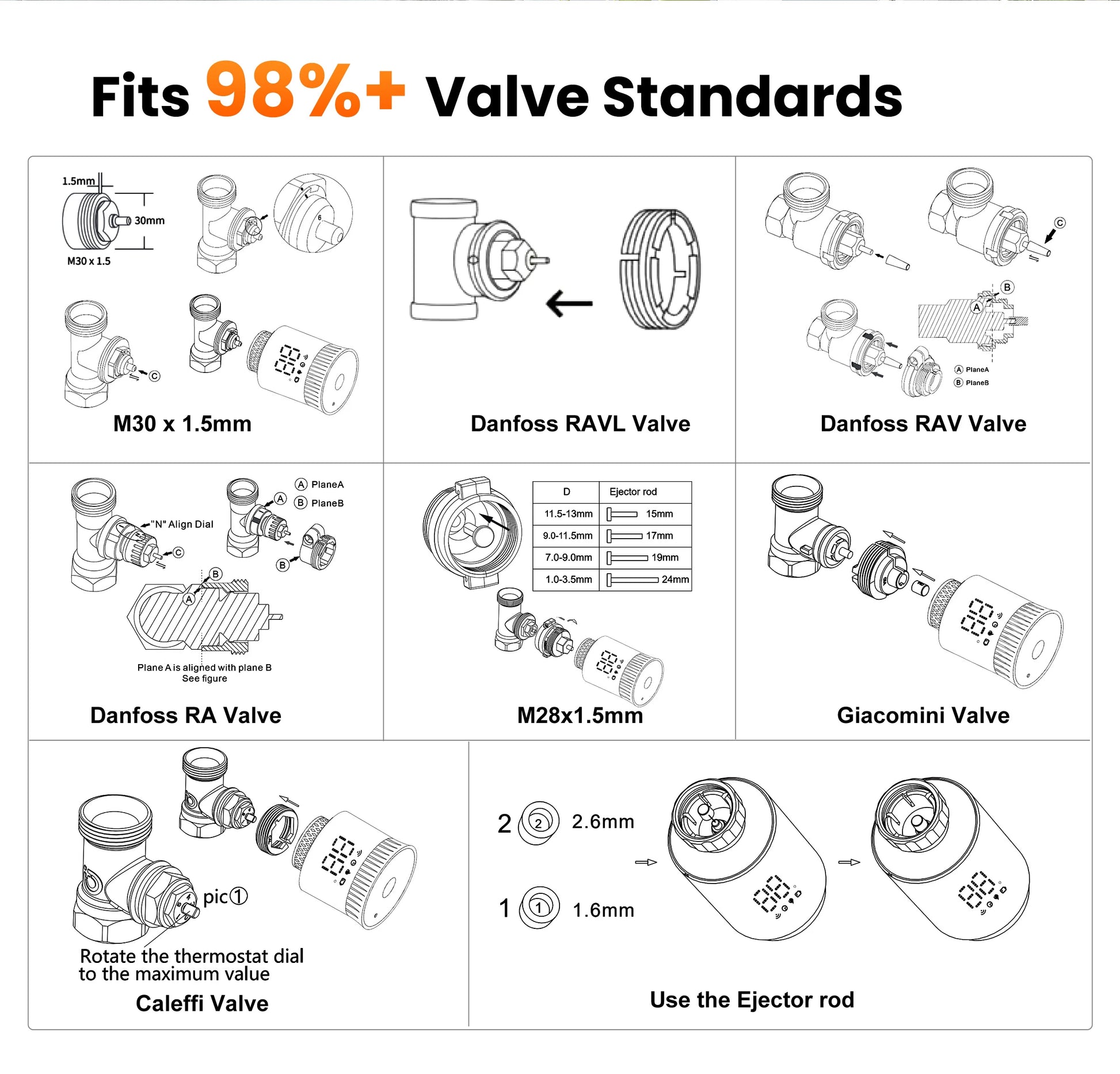

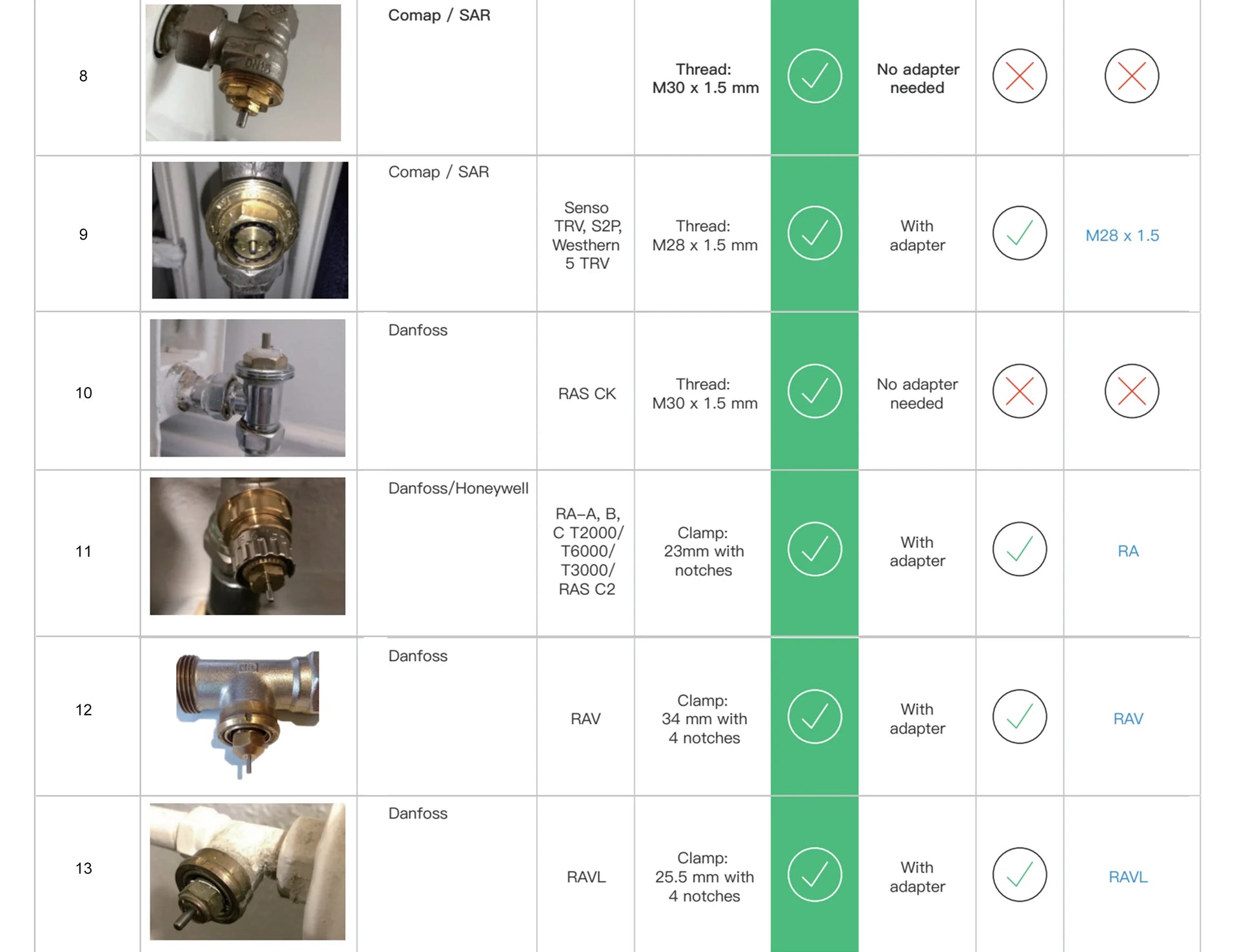

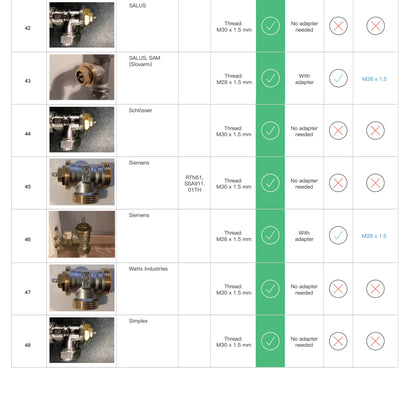

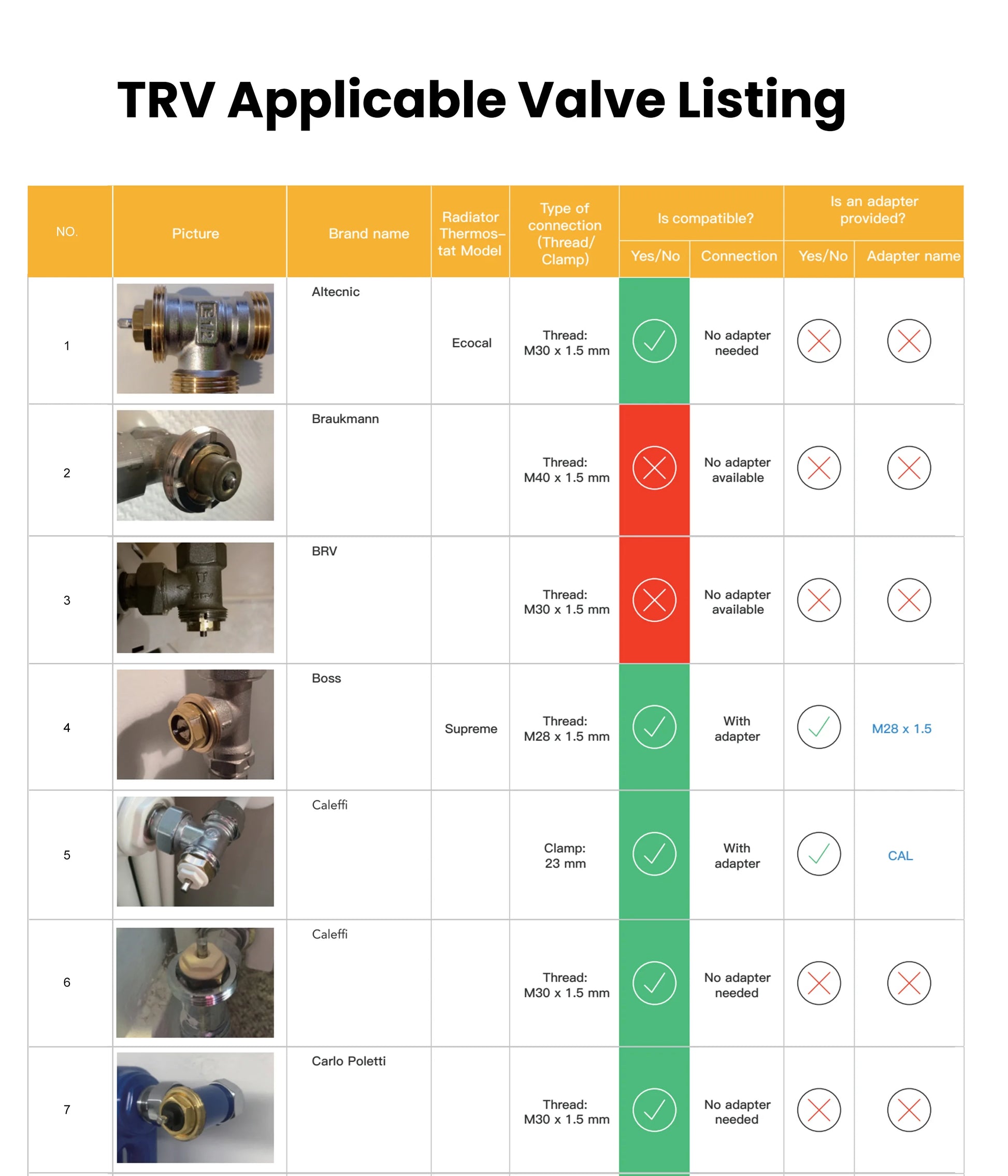

Fits 98%+ Valve Standards
Designed to fit 98%+ of radiator valves, our TRV seamlessly integrates with standard "M30 x 1.5 mm" valves. With included accessories, installation is hassle-free.
Precise Temperature Regulation
Equipped with a high-quality motor, the GIRIER smart thermostatic radiator valve ensures accurate temperature control. Boost, manual, or app-based adjustments swiftly reach your desired comfort level.
Customizable Heating Schedules
Simplify your life with weekly programming, allowing for 6 customizable time periods daily. Meet all your heating needs effortlessly, ensuring a consistently warm home.
Effortless Voice Control
Control your TRV hands-free with Alexa or Google Assistant. Simple voice commands adjust settings and temperatures, enhancing your smart home experience.

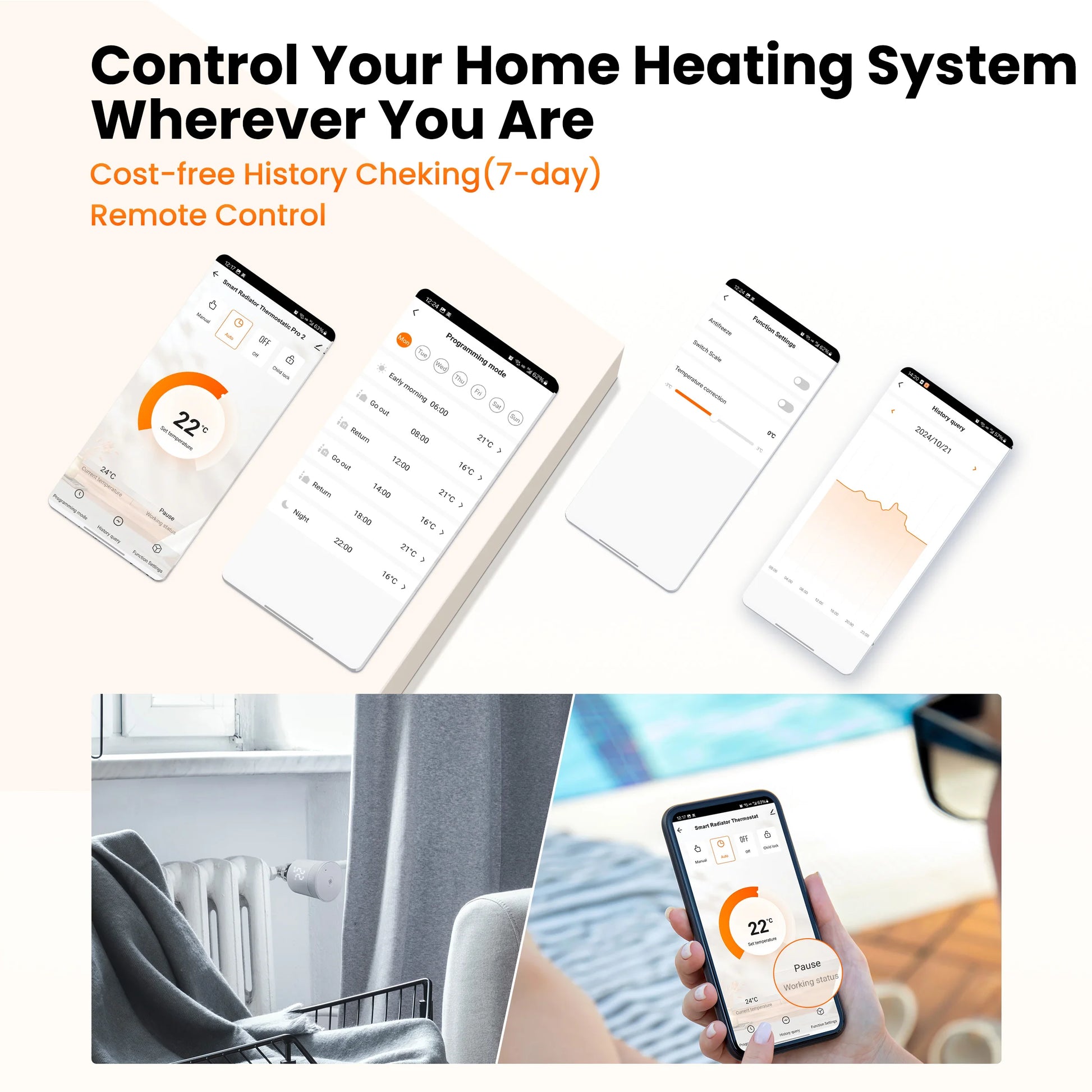

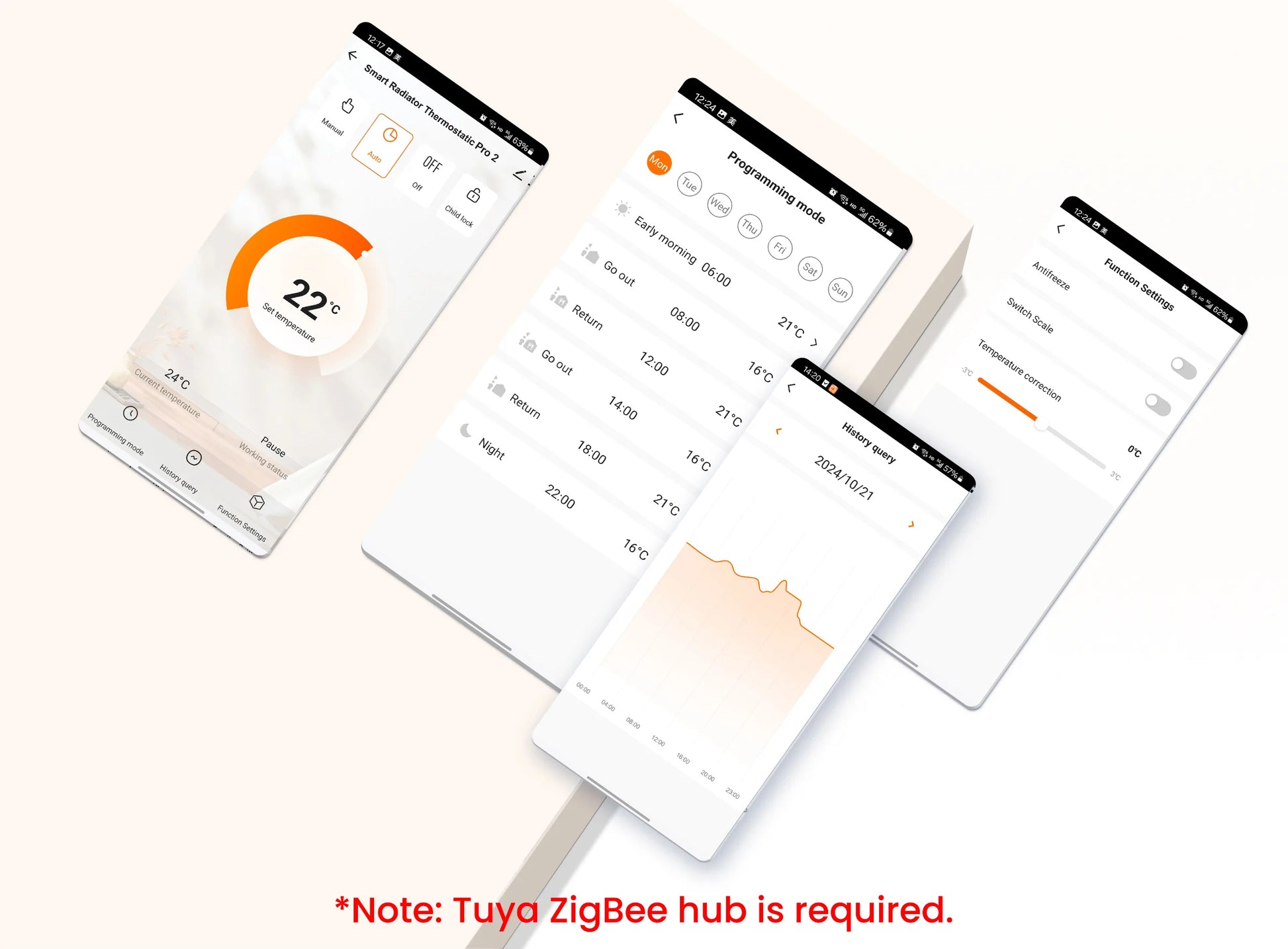

APP Remote Control
Stay in control from anywhere with the TuyaSmart/Smart Life app. Monitor and adjust your TRV settings remotely, ensuring optimal comfort and energy efficiency.

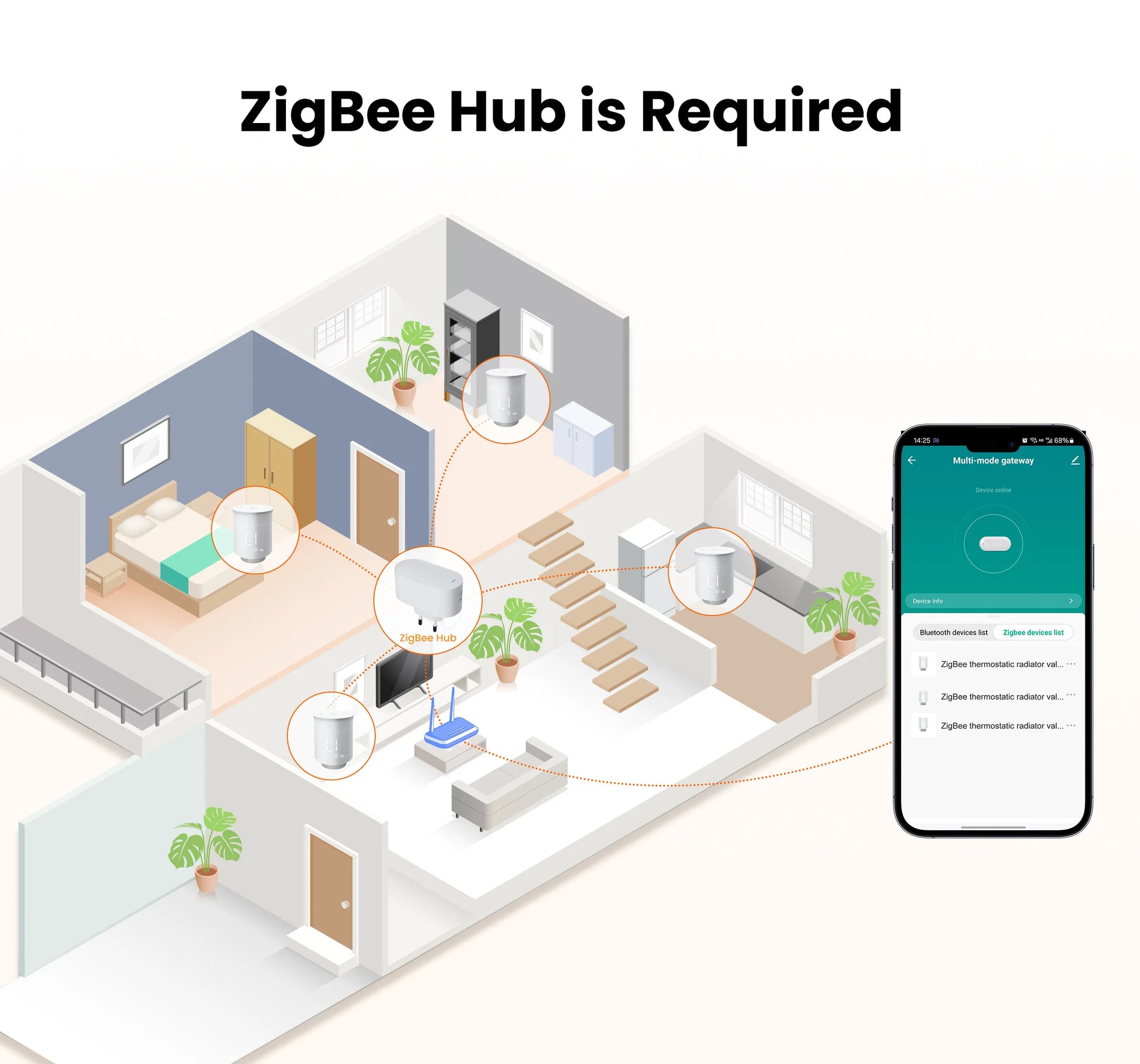

Note: Tuya ZigBee Gateway Required

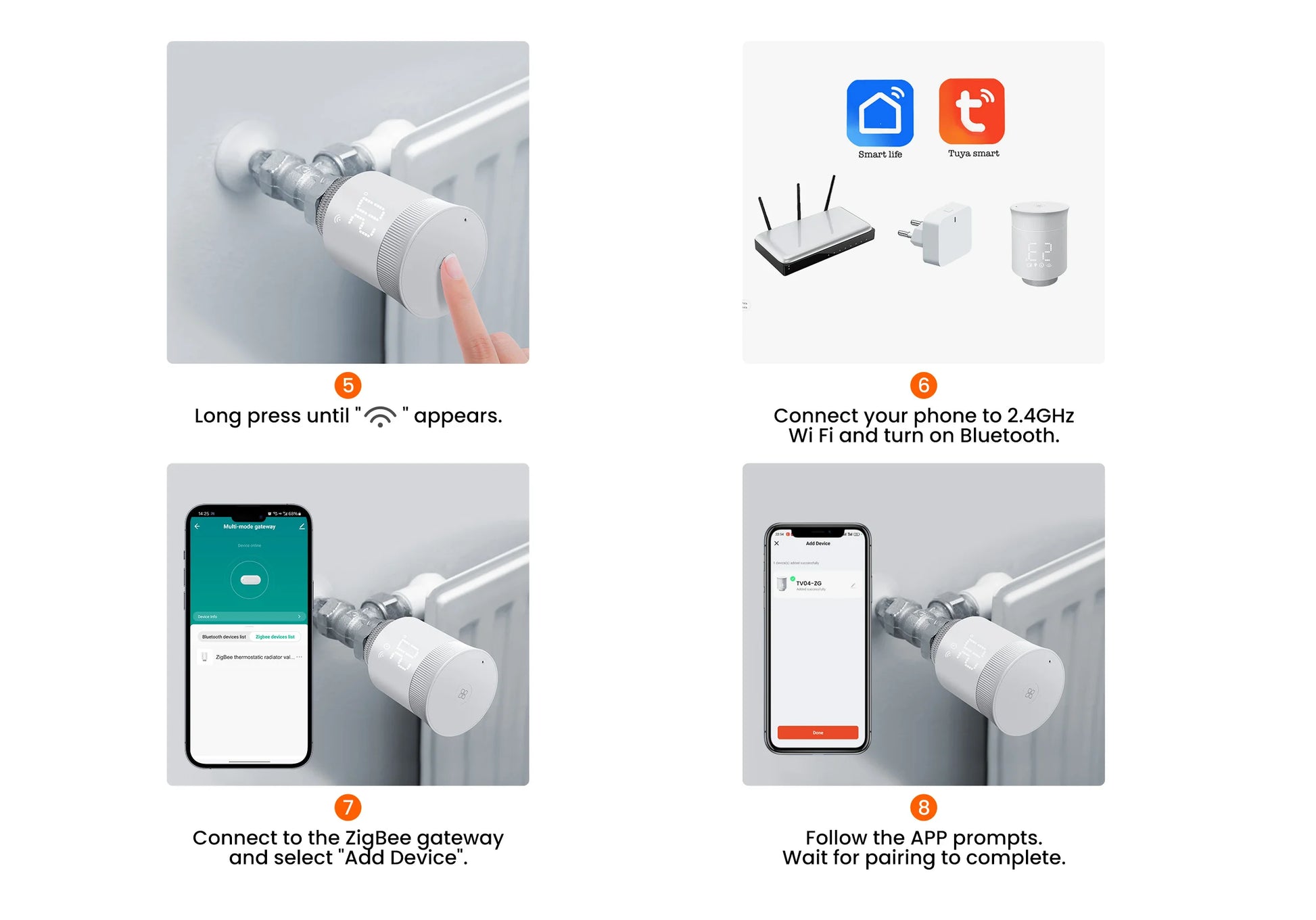

How to pair it?
Note: Please connect the 2.4GHz Wi-Fi connection and pair the Tuya ZigBee Hub first if you use ZigBee version.

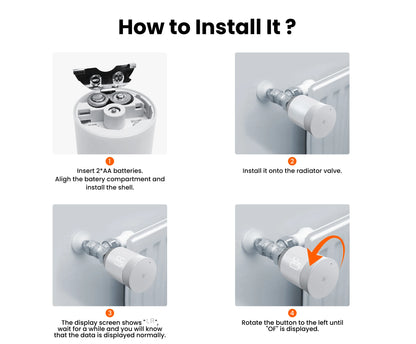

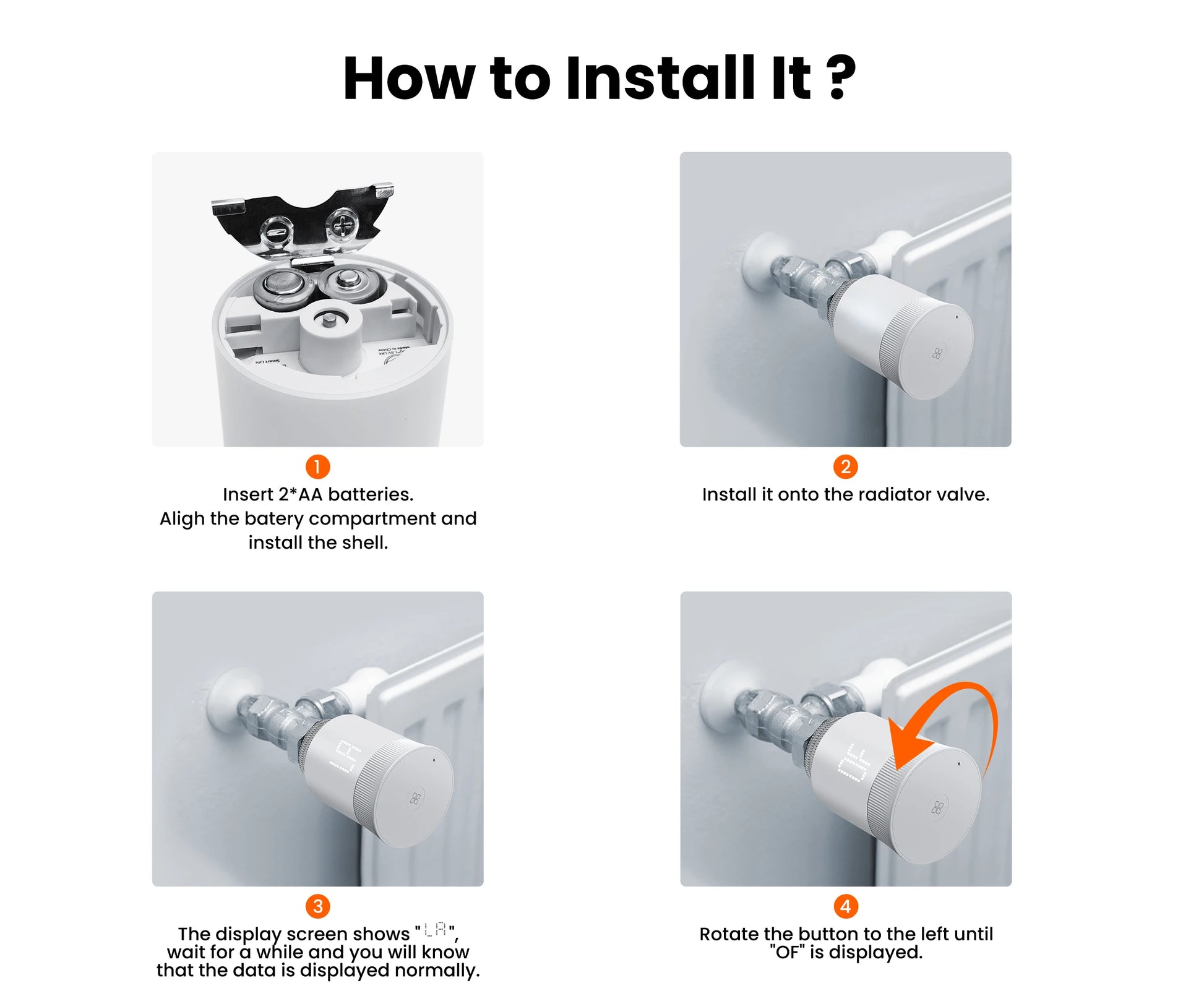

Insert batteries. Aligh the batery compartment and install the shell.
1. Before pairing, you need to install it onto the radiator valve. If your valve is not M30 standard, please select the suitable adapters.
2. Short press the button and then wait for a few minutes. The icon " LA" shows that an adapting run to adapt the TRV to the valve.
3. Turn the knob to the left until "OF" appears on the screen.
4. Long press the middle button until the signal indicator starts flashing.
5. Enter the Tuya ZigBee Gateway hub homepage and choose "ZigBee Device"
6. Click "Add Device" and wait for connection.

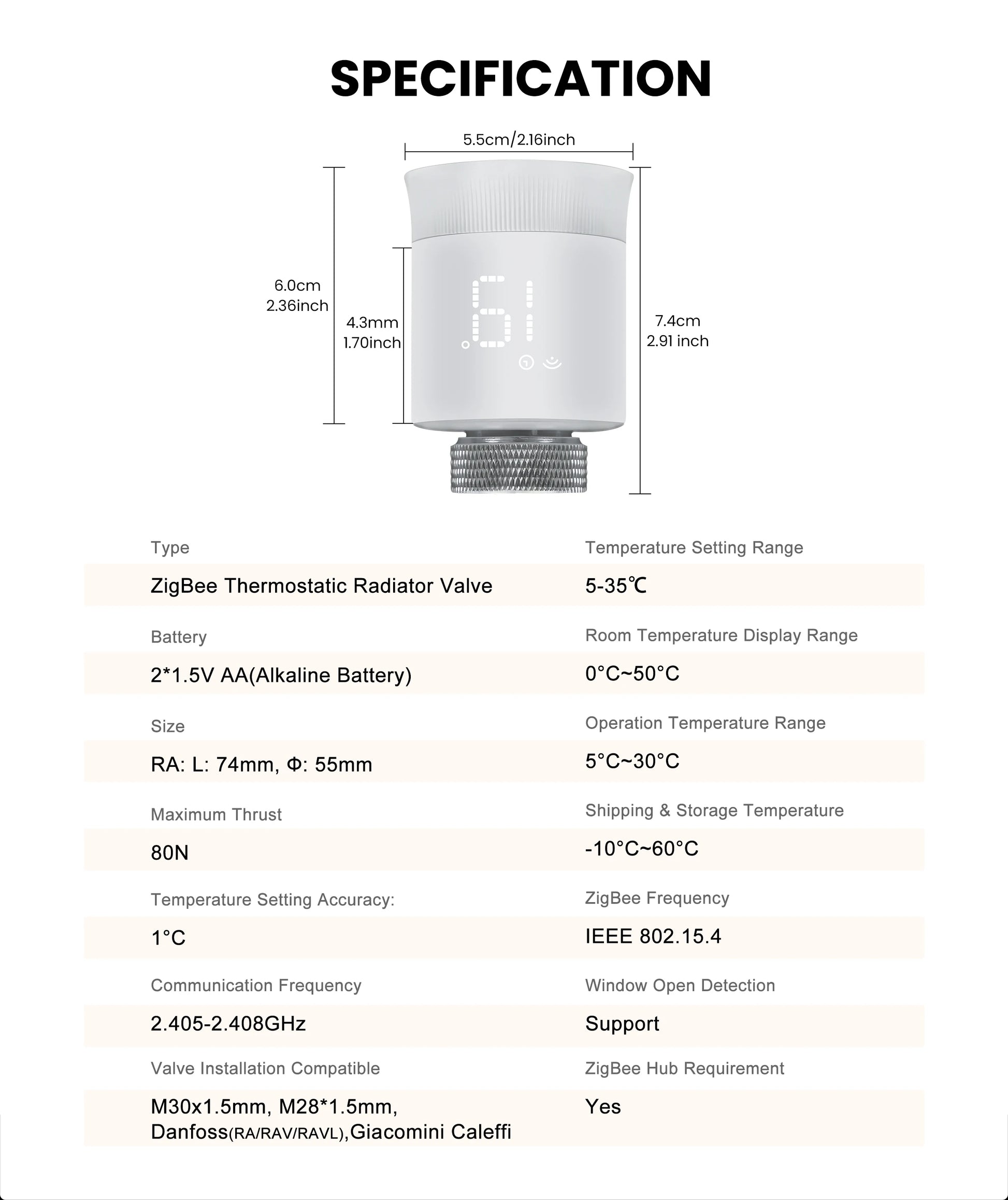

SPECIFICATION
Type: ZigBee Thermostatic Radiator Valve

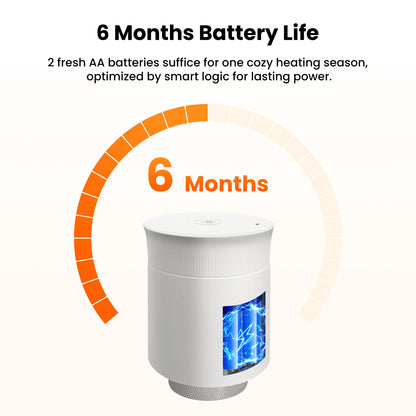

Battery: 2*1.5V AA(Alkaline Battery)
Size: RA: L: 74mm, Ф: 55mm
Maximum Thrust: 80N
Temperature Setting Accuracy: 1°C
Temperature Setting Range: 5-35℃
Room Temperature Display Range: 0°C~50°C
Operation Temperature Range: 5°C~30°C
Shipping & Storage Temperature: -10°C~60°C
ZigBee Frequency: IEEE 802.15.4
Communication Frequency: 2.405-2.408GHz
Valve Installation Compatible: M30x1.5mm, M28*1.5mm, Danfoss(RA/RAV/RAVL), Giacomini Caleffi
Window Open Detection: Support
Child-lock: Support
ZigBee Hub Requirement: Yes

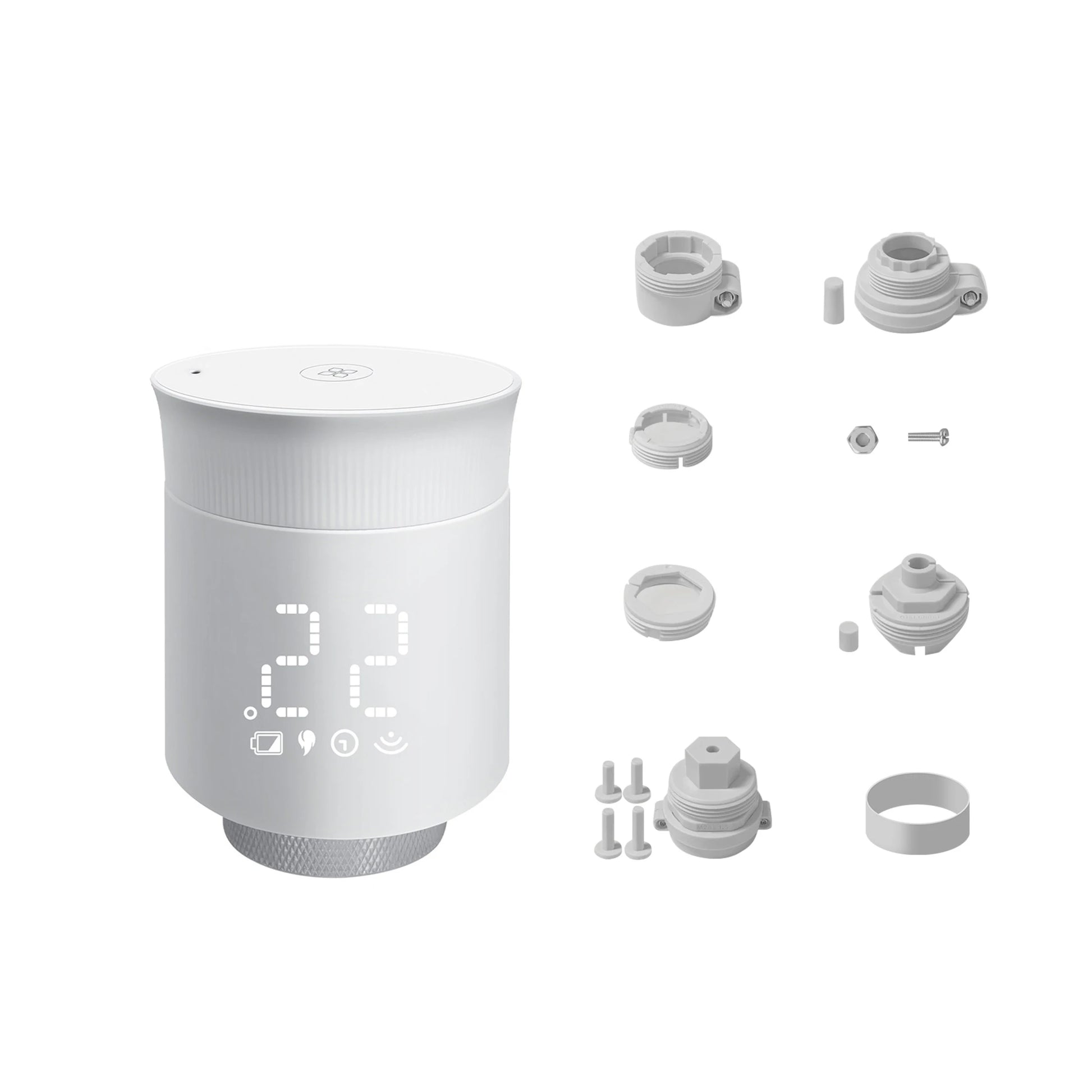

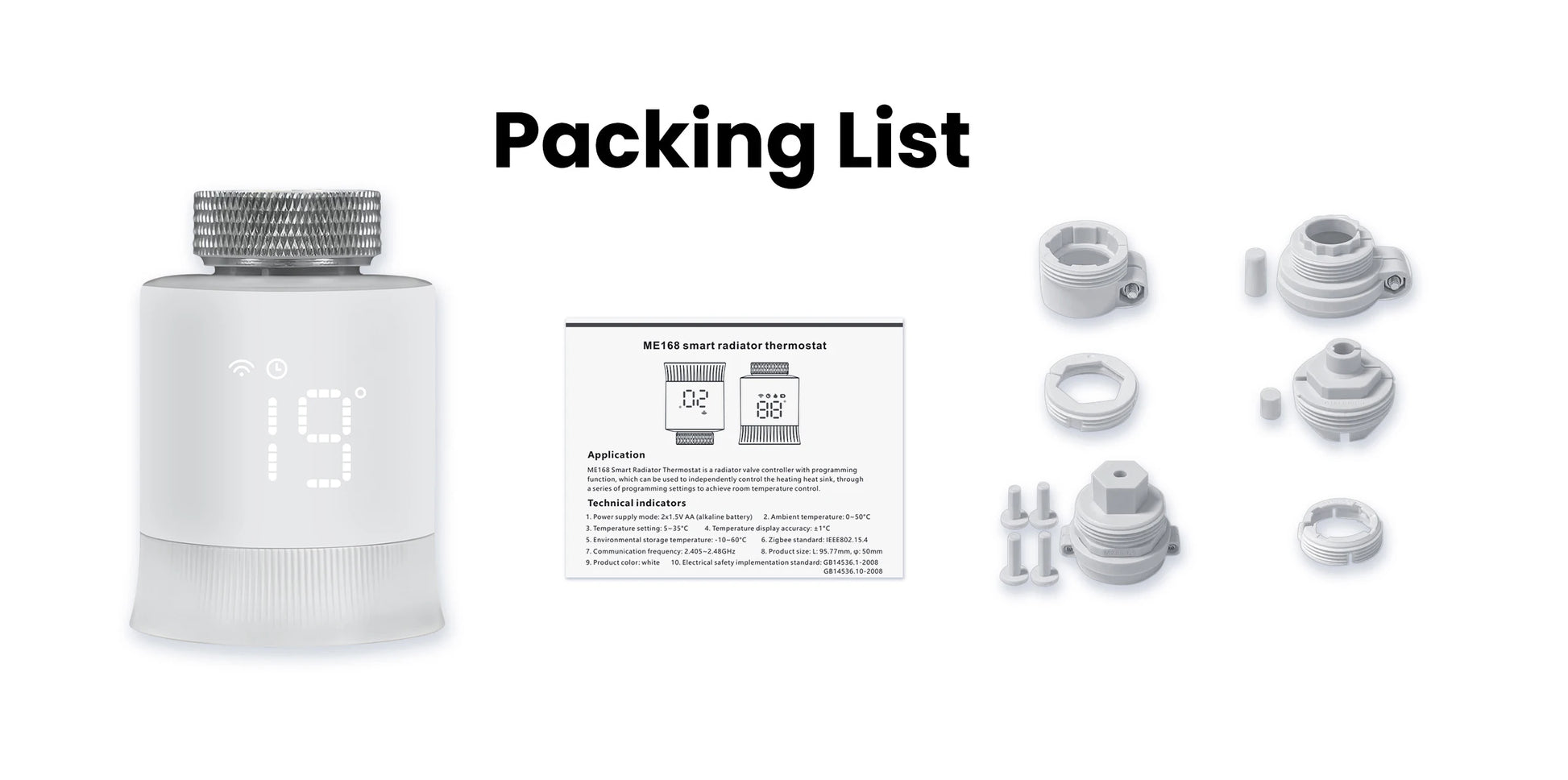

Packing List

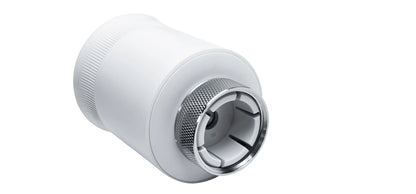

1*ZigBee Radiator Thermostat Valve
Connection Adapters: RA/RAV/RAVL/CAL/GIA/M28 Adapters
1*User Manual
