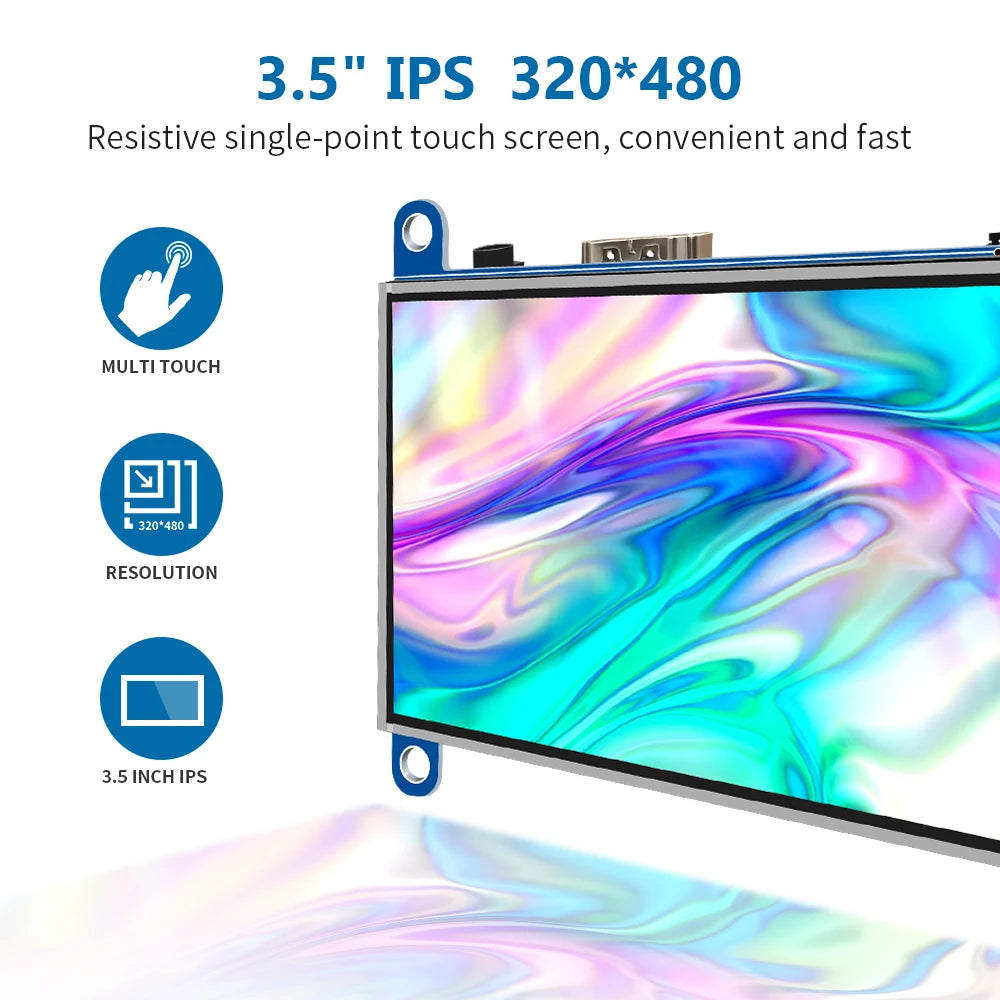

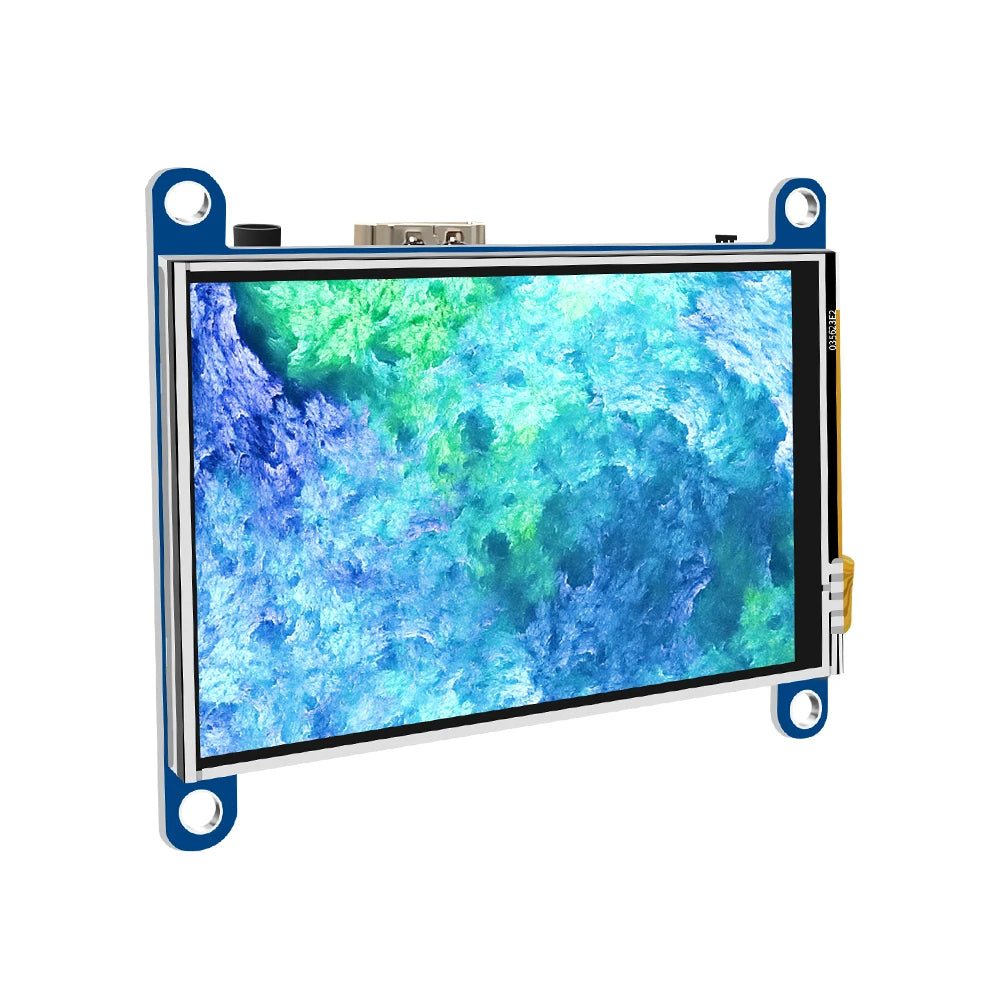

3.5 Inch LCD Monitor - Raspberry Pi Display With Resistive Touch Screen | 480x320 Pixel

SPECIFICATIONS

Application: Desktop

Black and White Response Time: 1 ms

Bracket Type: Ordinary Bracket

Brand Name: IHANFO

Brightness: 500cd/m

Built-in Speaker: No

Certification: CE,RoHS

Compatible con Raspberry Pi 4: 480*320

Contrast Ratio: 800:1,650:1

Display Ratio: 16:10

Display Size: 3.5,23.6"

Feature: Usb port,Touch Screen

High-Dynamic Range: None

High-concerned chemical: None

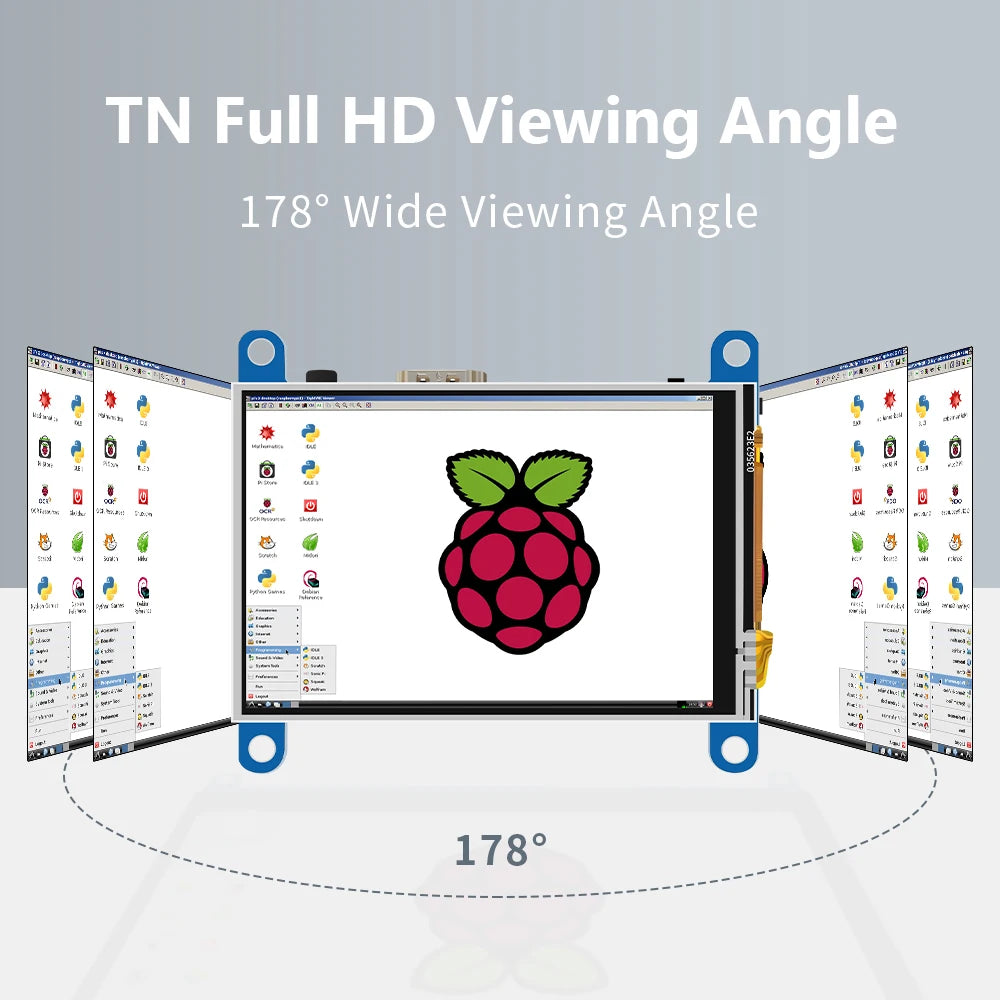

Horizontal Viewing Angle: 165°

Launch Date: 2016

Monitor 3.5 inch HDMI: JRP3509B

Origin: Mainland China

Panel Type: TN(防护工具)

Pixel Pitch: 0.217mm

Plug Type: US Plug

Products Status: STOCK

Raspberry Pi Touchscreen: HDMI Screen Display

Refresh Rate: 60 Hz

Resolution: 640x480

Response Time: 3ms

Screen Type: LCD

Screen curvature: None

Vertical Viewing Angle: 165°

【Product description】

●.3.5 inch standard display, 480 × 320 Hardware resolution, Up to 1920x1080 Software configuration resolution.

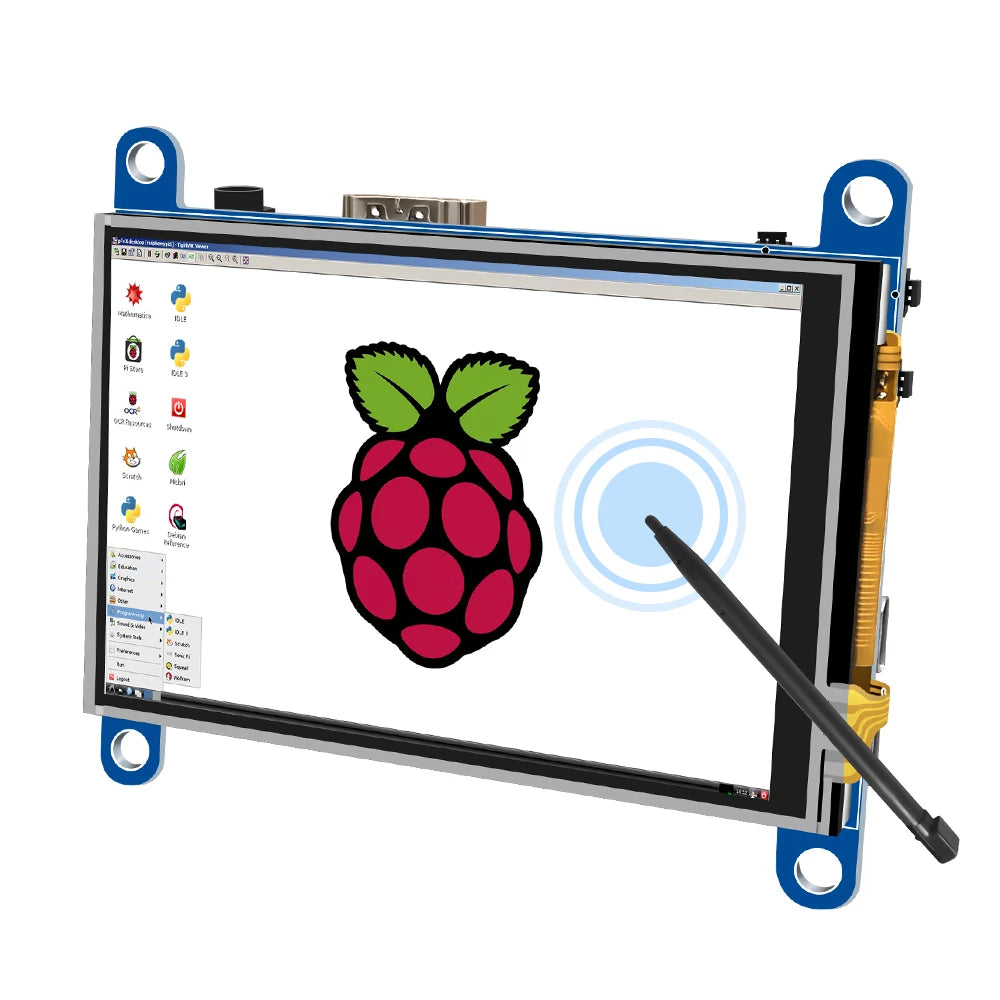

●.Resistance touch screen.

●.Support backlight control alone, the backlight can be turned off to save power.

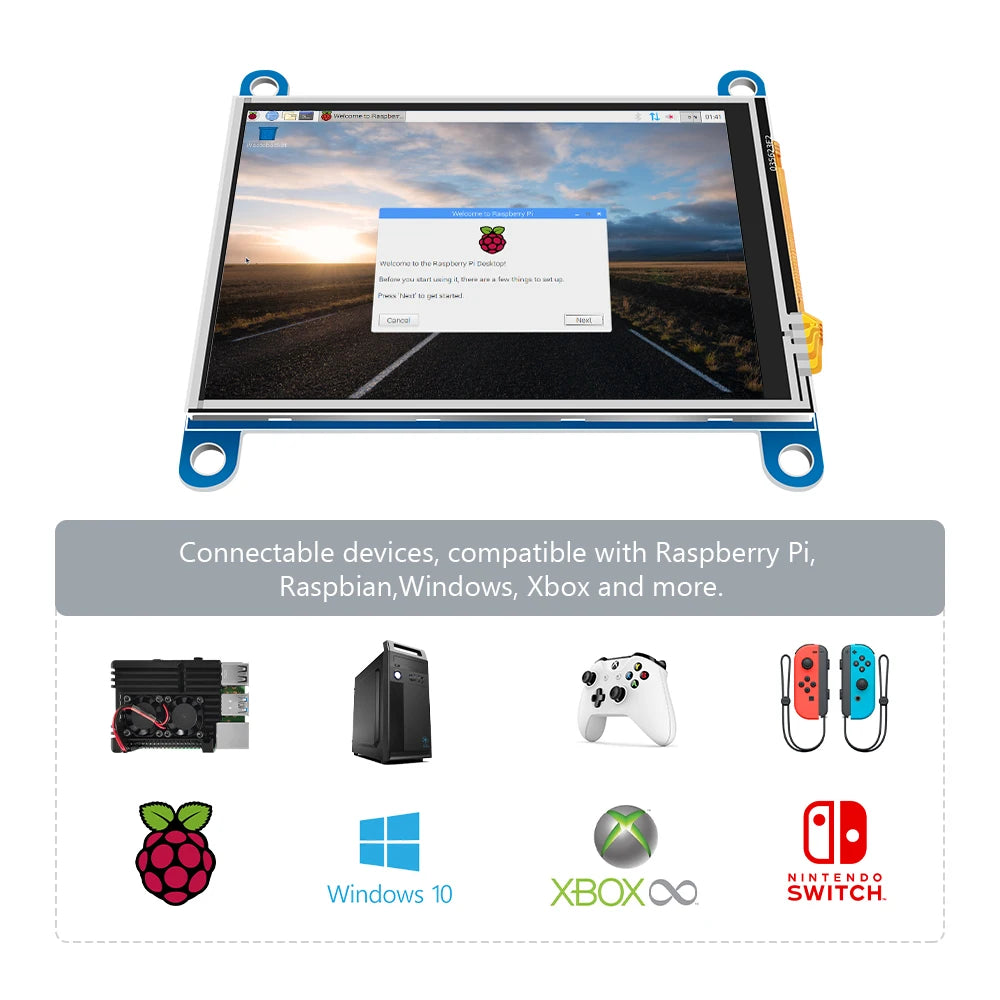

●. Support Raspberry Pi, BB Black, Banana Pi and other mainstream mini PC.

●.Can be used as general-purpose-use HDMI monitor, for example: connect with a computer HDMI as the sub-display .

●.Used as a raspberry pi display that supports Raspbian, Ubuntu, Kali-Linux, Kodi, win10 IOT, single-touch, free drive.

●.Work as a PC monitor, support win7, win8, win10 system 5 point touch (XP and older version system: single-point touch),

free drive.

●.CE, RoHS certification.

【Product Parameters】

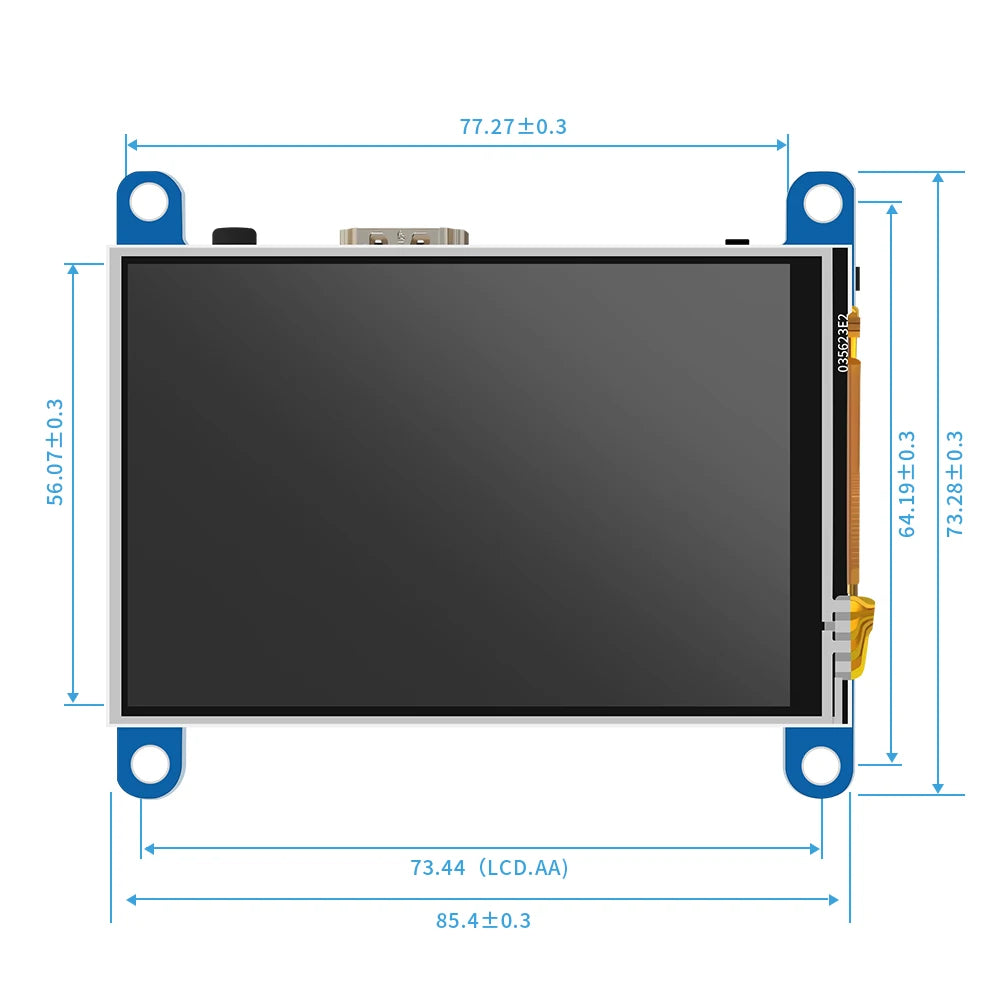

●.Size:3.5 (inch) ●. Resolution:480 ×320 (dots)      ●. SKU: JRP3509

●. Touch: Resistive touch  ●.Weight: 200 (g)

How to use with Raspbian/Ubuntu Mate/Win10 IoT Core System

Step 1, Install Raspbian official image

1. Download the latest image from the official download.

2. Install the system according to the official tutorial steps.

Step 2, modify the “config.txt”

After the programming of Step1 is completed, open the config.txt file of TF card root directory and
add the following code at the end of the file, save and eject Micro SD Card safely:max_usb_current=1
hdmi_force_hotplug=1
config_hdmi_boost=7
hdmi_group=2
hdmi_mode=87
hdmi_drive=1
display_rotate=0
hdmi_cvt 480 320 60 6 0 0 0

Step 3, Drive the HDMI with the Raspberry Pi

Insert the TF Card to Raspberry Pi, connect the Raspberry Pi and LCD by HDMI cable;

connect USB cable to one of the four USB ports of Raspberry Pi,and connect the other end of the USB cable to the USB port of the LCD;

then supply power to Raspberry Pi; after that if the display and touch both are OK,it means drive successfully (please use the full 2A for power supply).

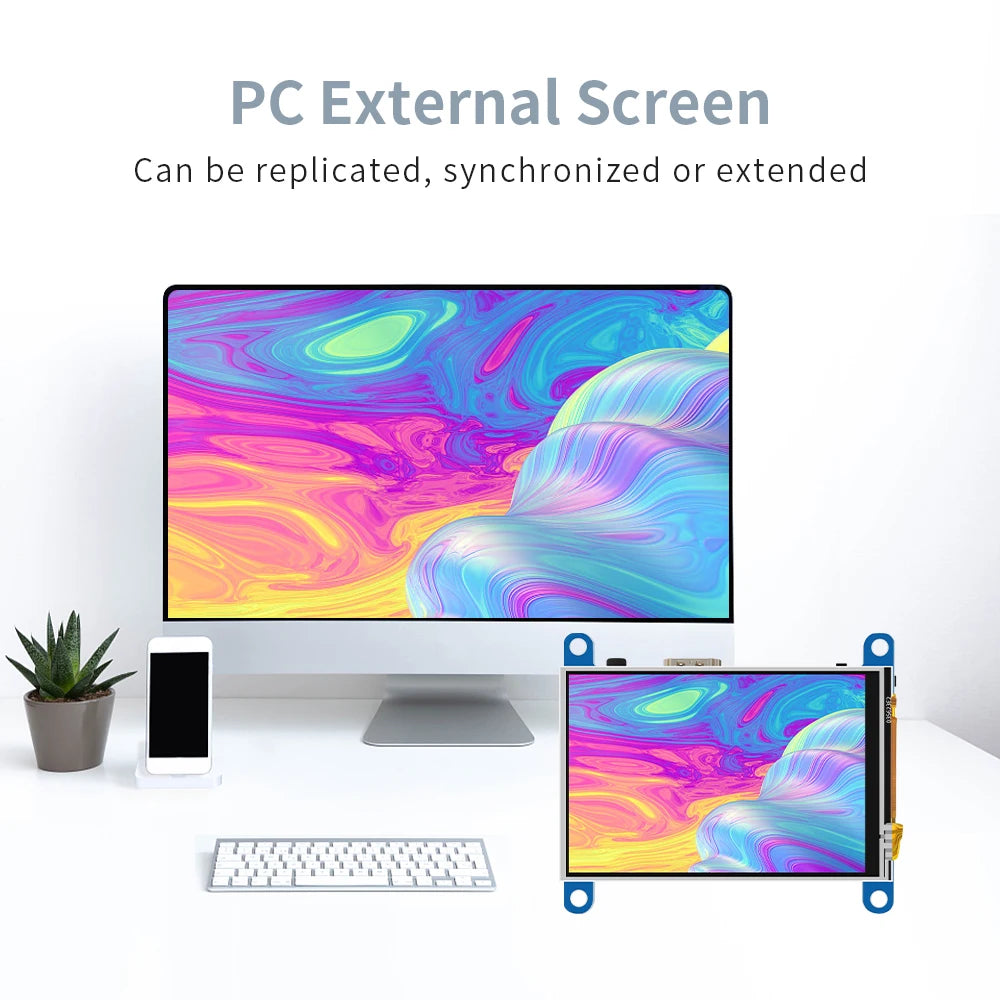

How to use as PC monitor

• Connect the computer HDMI output signal to the LCD HDMI interface by using the HDMI cable

• Connect the LCD's USB Touch interface (Either of the two MicroUSB) to the USB port of the device

• If there are several monitors, please unplug other monitor connectors first, and use LCD as the only monitor for testing.
